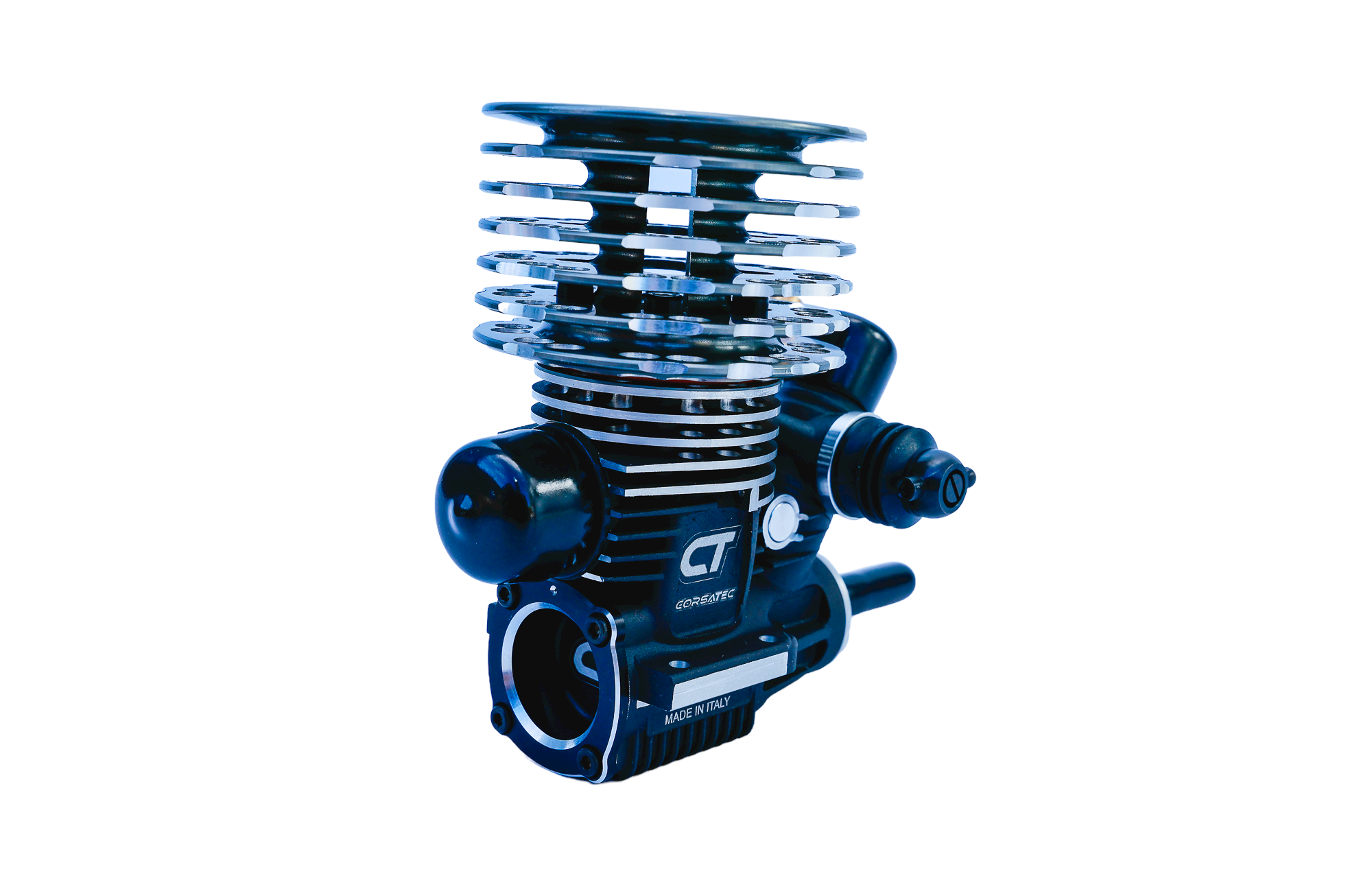

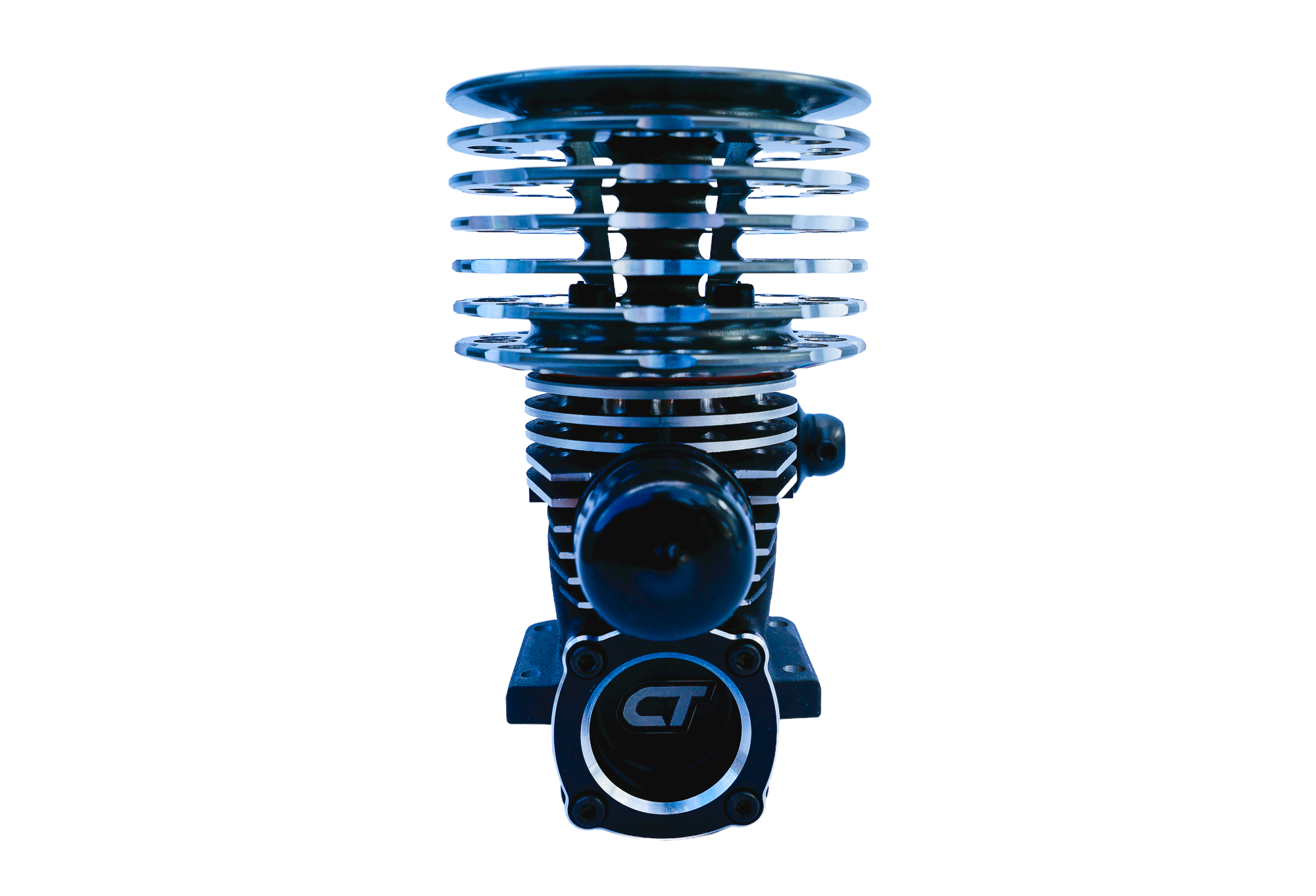

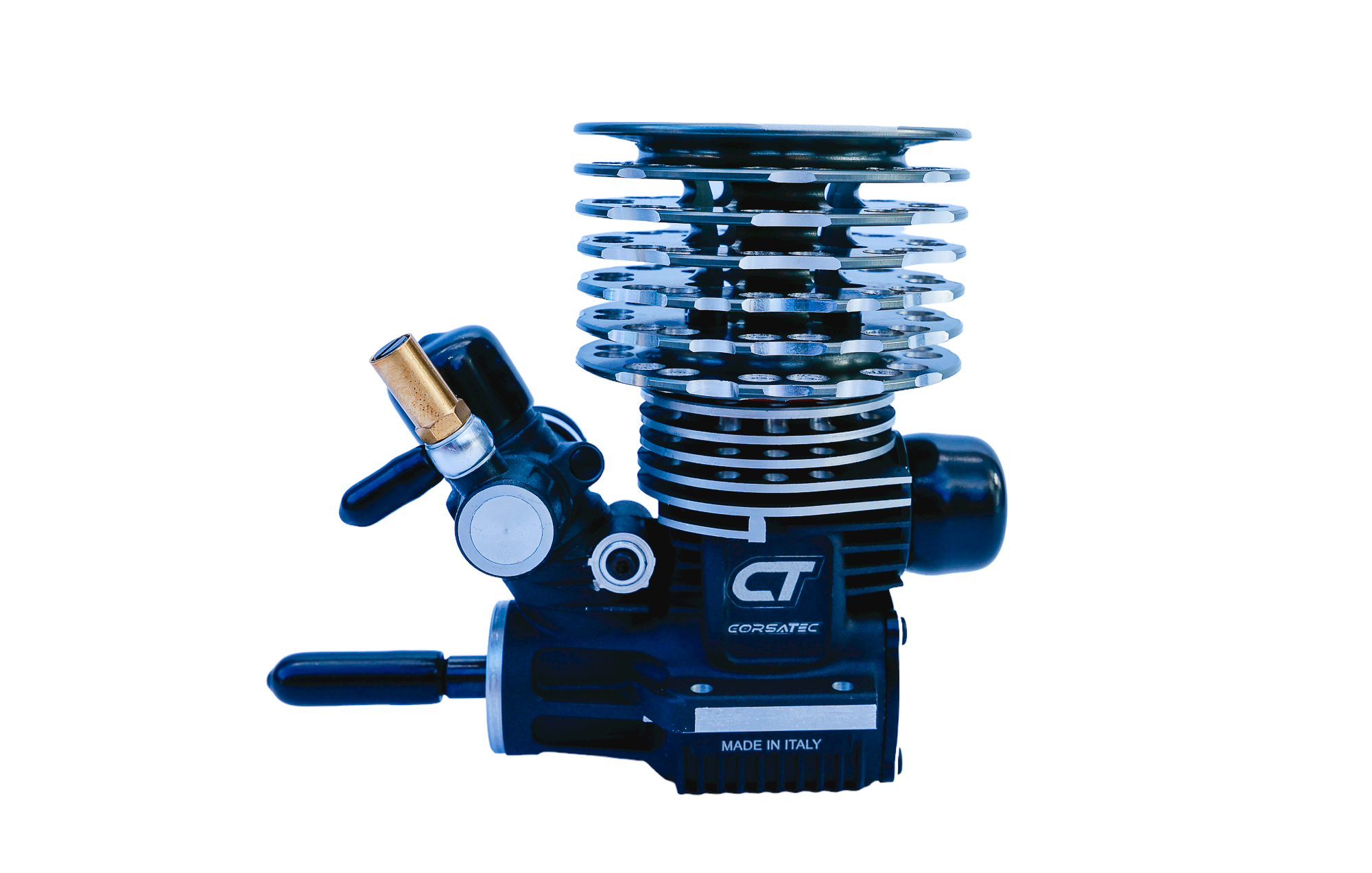

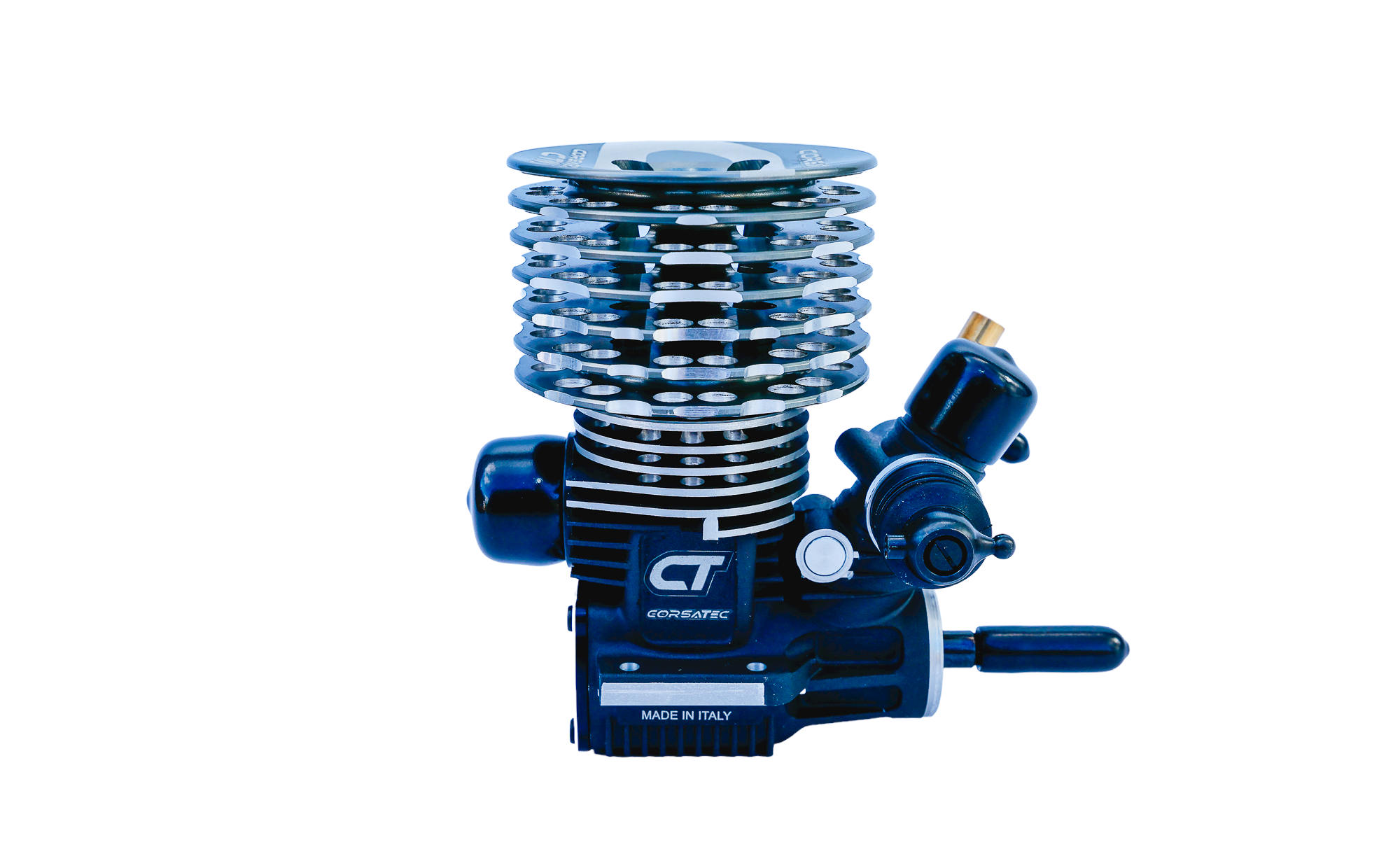

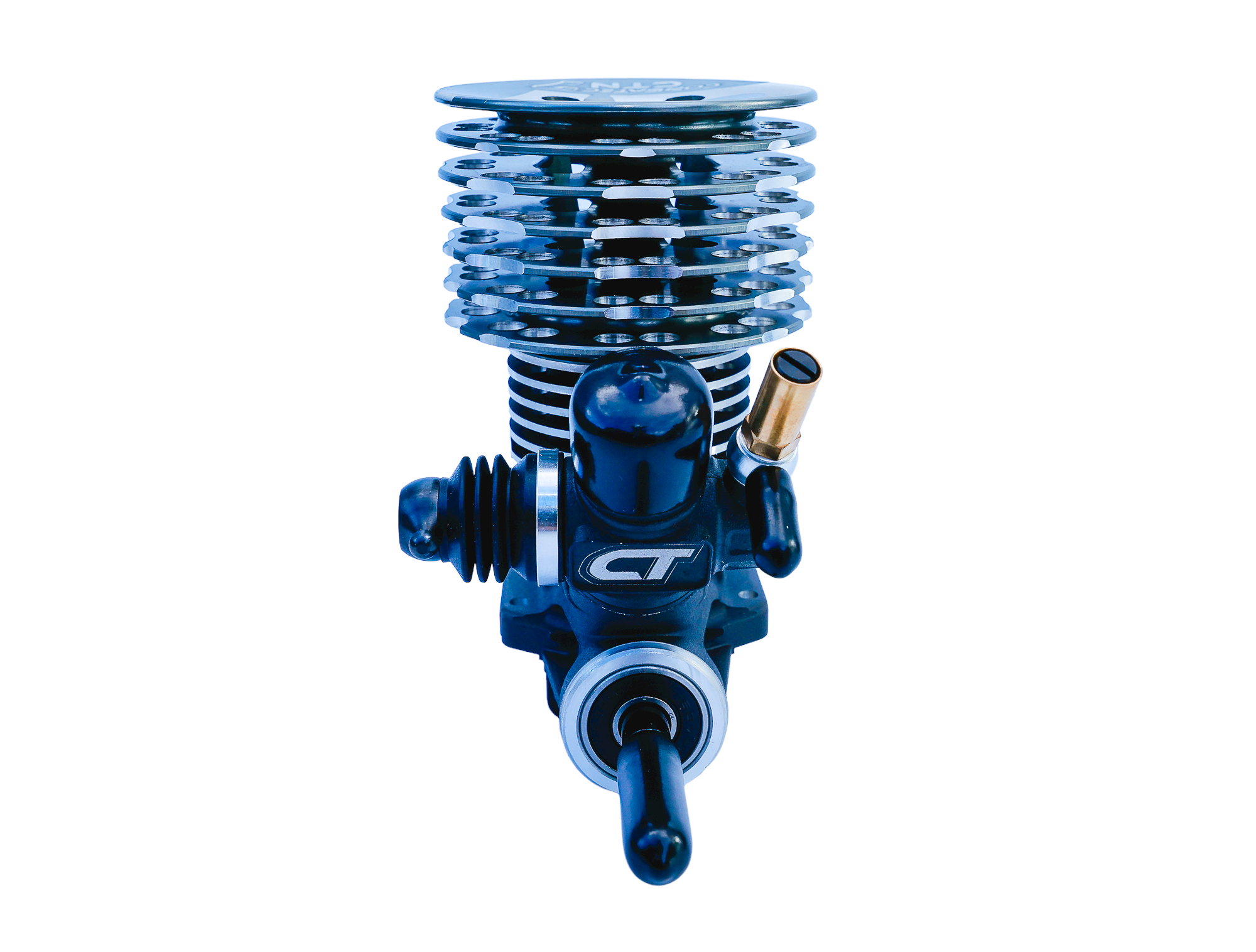

CORSATEC - Nitro Motor CTN7, 1/8 Off Road

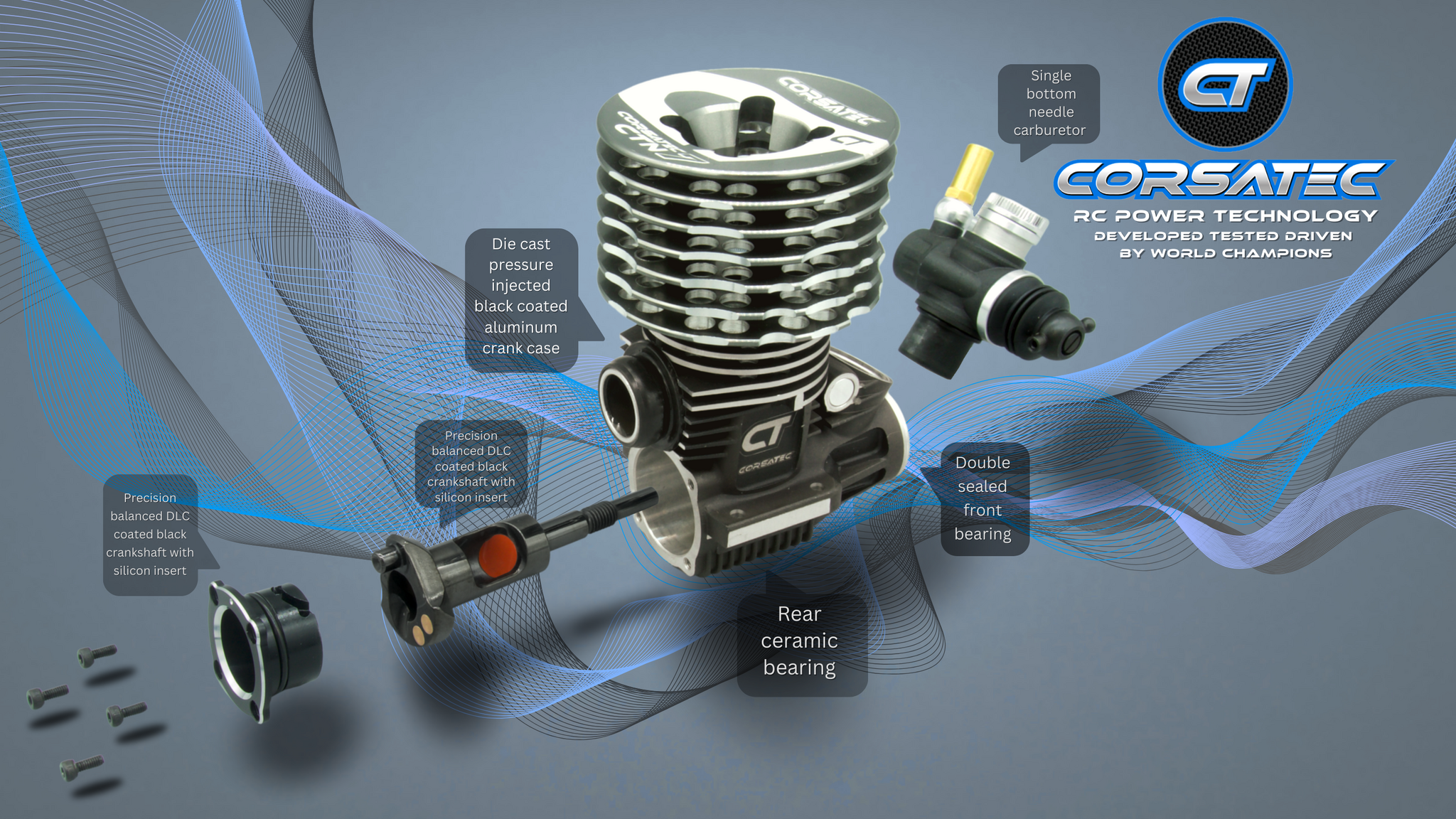

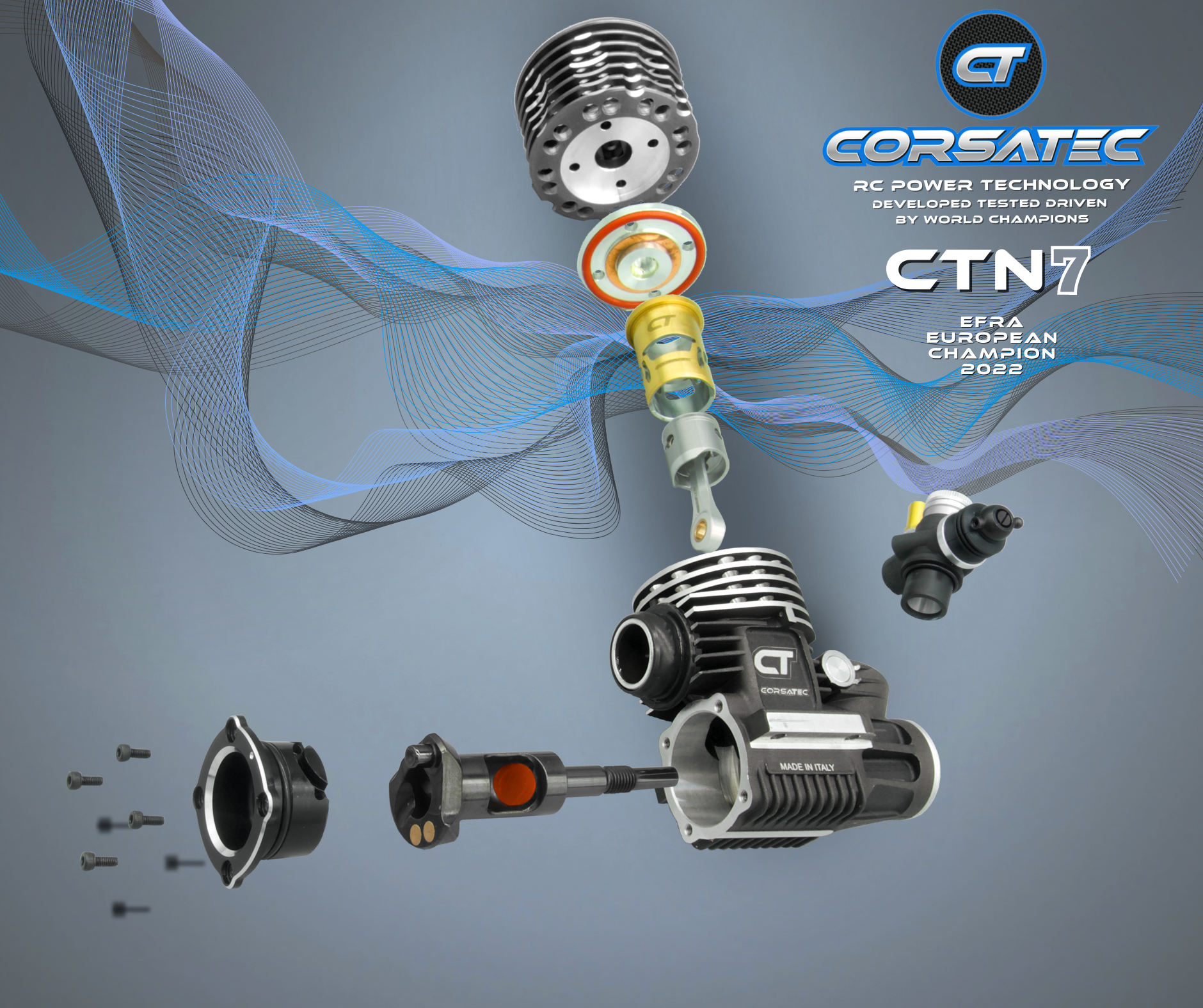

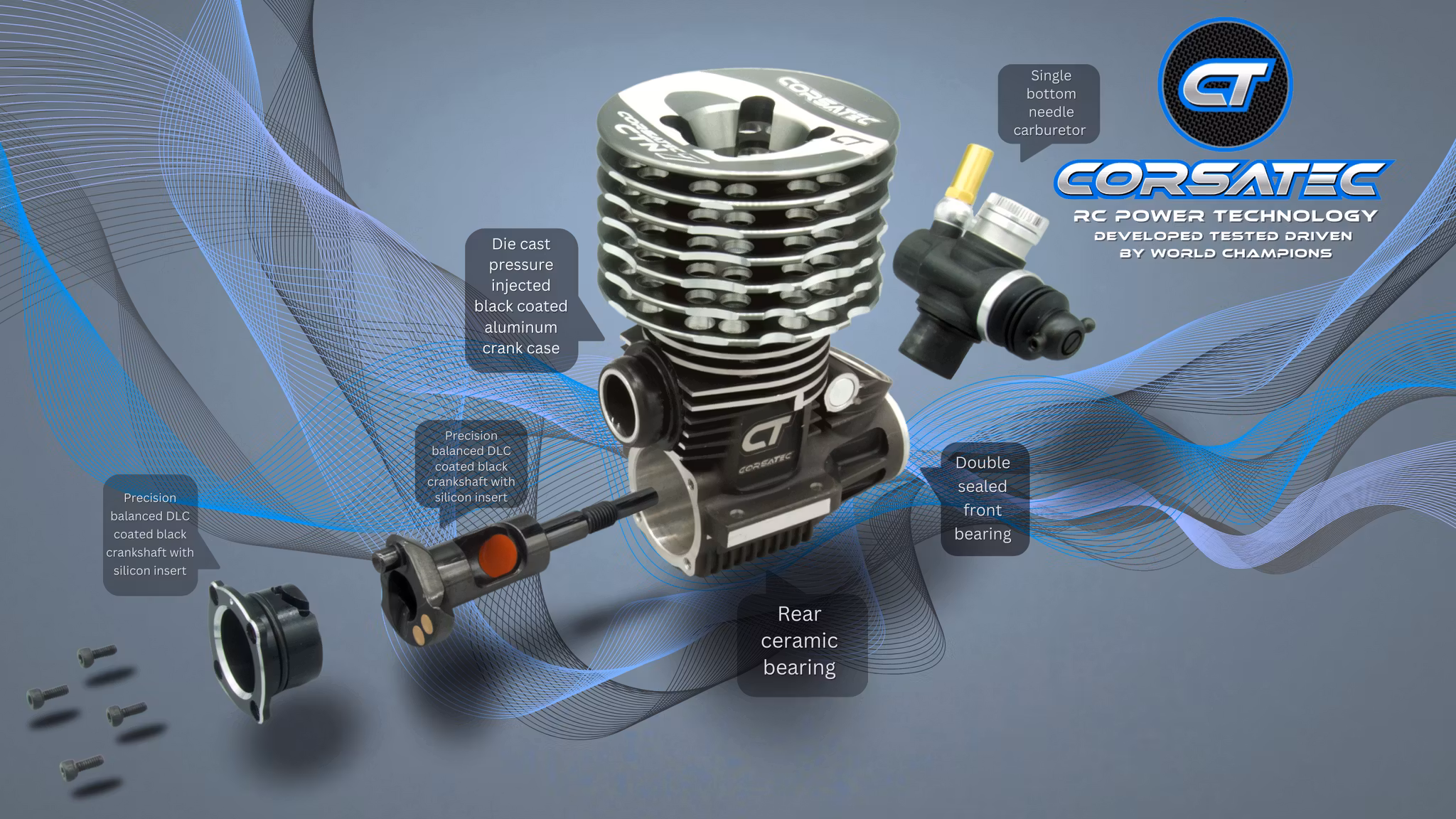

Built with a high precision die cast pressure injected black coated aluminum crankcase and combined with long stroke precision balanced DLC black coated crankshaft with silicon insert, it produces a smooth powerband, making it very easy to drive while giving instant, crisp throttle response. The carburetor features a single bottom needle for easy tuning while providing excellent fuel efficiency, giving the racer a strategic advantage during the long finals. The lightweight aluminum machined piston is hand-selected to perfectly match the seven-port sleeve. Finally, high, quality ball bearings, both front, and rear, with double seals at the front end for better protection and ceramic at the rear supporting the crankshaft, longer life and smoother operation is achieved. Designed, developed, and produced in Europe by the expert World Champion Adrien Bertin, we are excited to supply racers around the world with a product that reaches the highest performance standards.

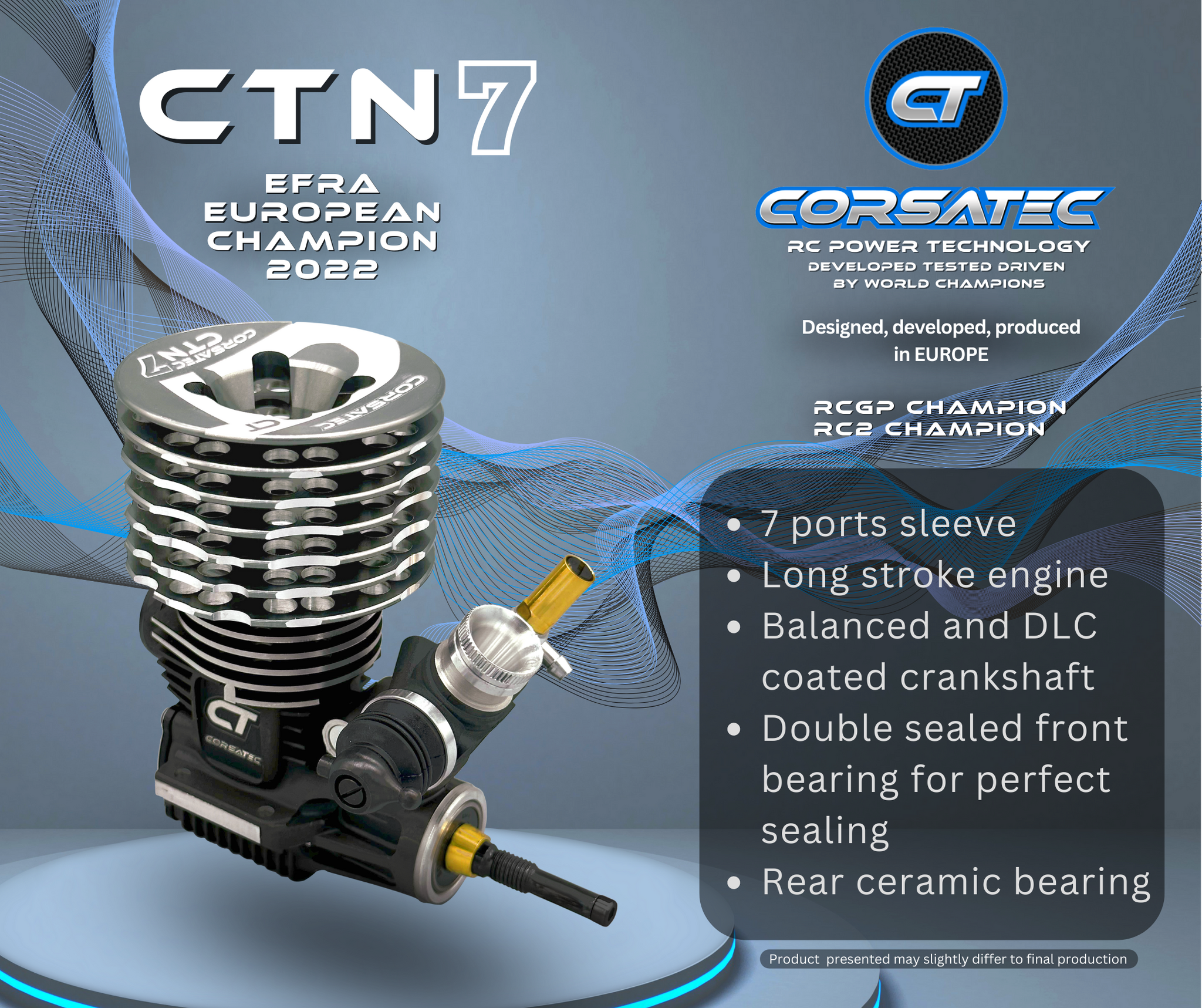

7 ports sleeve with machined piston
Long stroke engine
Balanced and DLC-coated crankshaft
Front bearing with double sealing for perfect seal
Rear ceramic bearing
Carburator with single bottom needle for easy tuning
Designed developed produced in EuropeExcellent feel and fuel efficiency

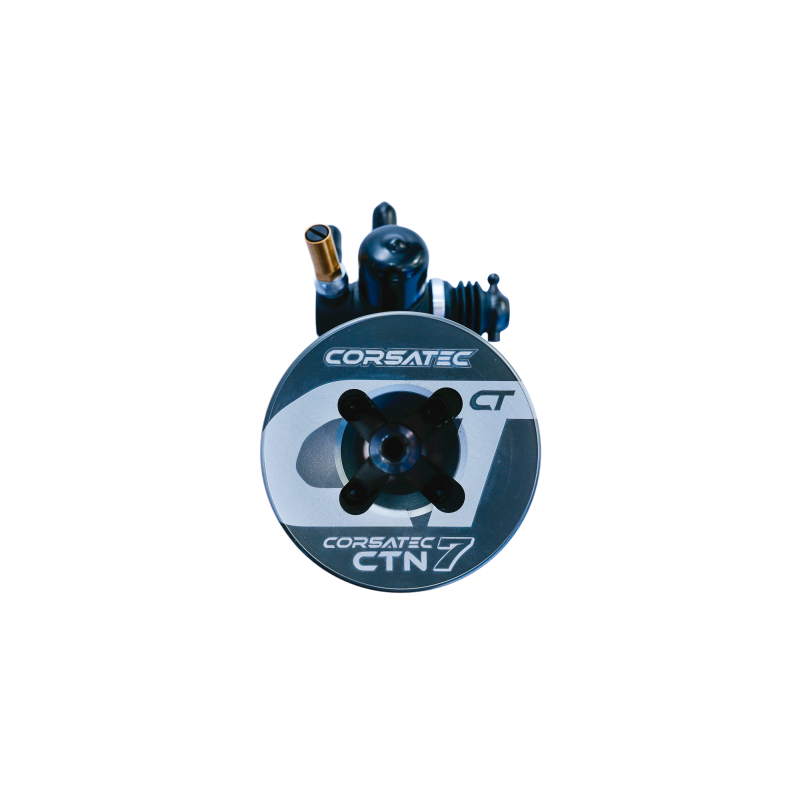

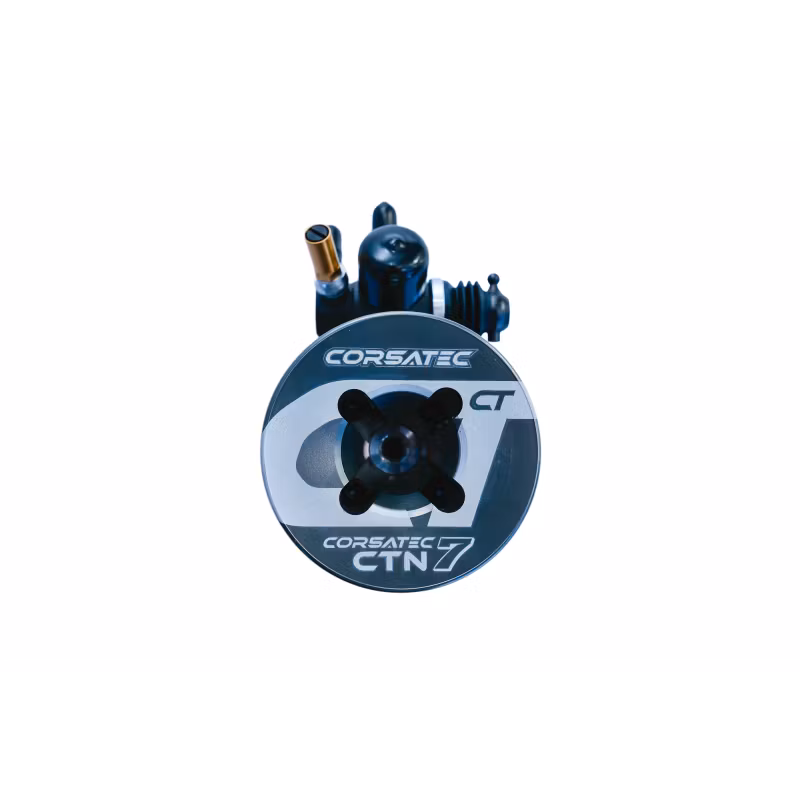

CNC lightweight 7 ribs head
Displacement 3.49cc / 0.213 cu.in.

Bore: 16,19 mm
Stroke: 16,90 mm
Estimated ps: 2.70 / 35.000 rpm
Operating RPM: 4.000 / 45.000
Weight: 355gr
Height: 103 mm
Head Height: 37.50 mm
Head Diameter: 59.50 mm
