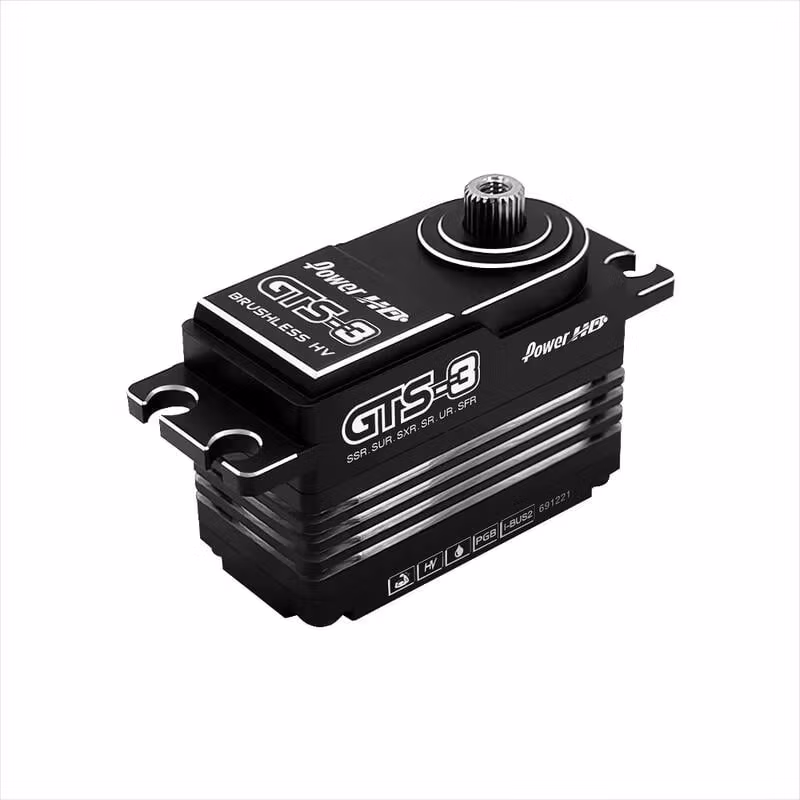

POWER HD - Servo GTS-3 0.055s/30kg/8.4V

The servos are the logical evolution of Power HD's proven products. The new GTS-3, GTS-5, GTS-6, and GTS-7 models support Flysky's i-BUS2 protocol, which the two brands developed together. The four-pole brushless motor provides faster response, higher heat resistance, and long life. The GTS series supports the PG-CB63 Power HD program box. Model numbers indicate the actuating force of each servo, with a range that includes 30, 50, 60, and 70 kg. The servos can be used with any 2.4GhZ remote control (not only FlySky).INFO: The receiver cable on this servo is extra long (approx. 29cm)

Technical data of the Power HD GTS-3 servo:

Torque(6.0V): 20.0 kg-cm / (722.1 oz/in)

Torque(7.4V): 26.0 kg-cm / (916.6 oz/in)

Torque(8.4V): 30.0 kg-cm / (972.1 oz/in)

Speed: 0.083 sec (6.0V) ©¦ 0.067 sec (7.4V) Speed: 0.055 sec (8.4V)

Operating Voltage: 6.0 ~ 8.4 DC Volts

Weight: 63 g (2.75 oz)

Bearing Type: Ball Bearing x 2Motor

Type: Brushless Motor

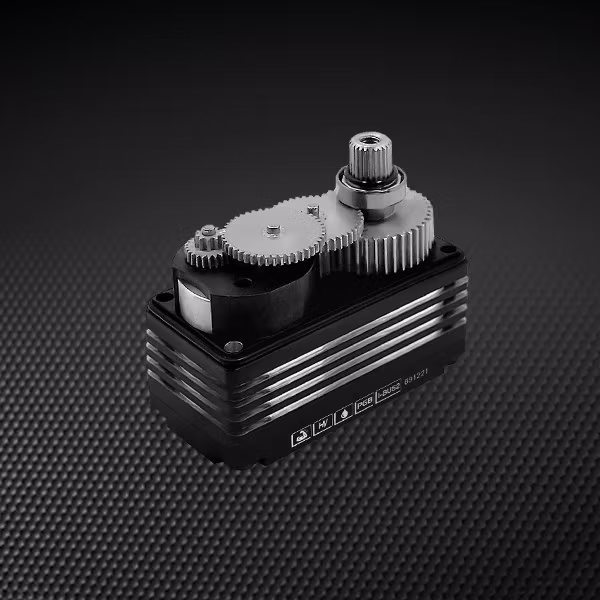

Gear Type: 7075+Steel

Operating Temperature: -20°~60°

Working frequence:1520hz / 1666hz

Size: 41.0 x 20.0 x 29 mm ( 1.57 x 0.79 x 1.51 in)

Max current: 7.5A
