Art.nr: A101A32971A
MAIN FEATURES
● Ultra Response Mode (SUR) New Transmitter system "FH5" makes a new record of the World's Fastest Response.
● Color Display and Touch Panel are easy to control.
● Lightweight (about 510g) and higher rigidity than M12S
● Steering and Throttle Position Optimization and Steering Swing Adjust Function
● Detachable Throttle Unit is available to change spring by drivers (World First)
PRODUCT DESCRIPTION

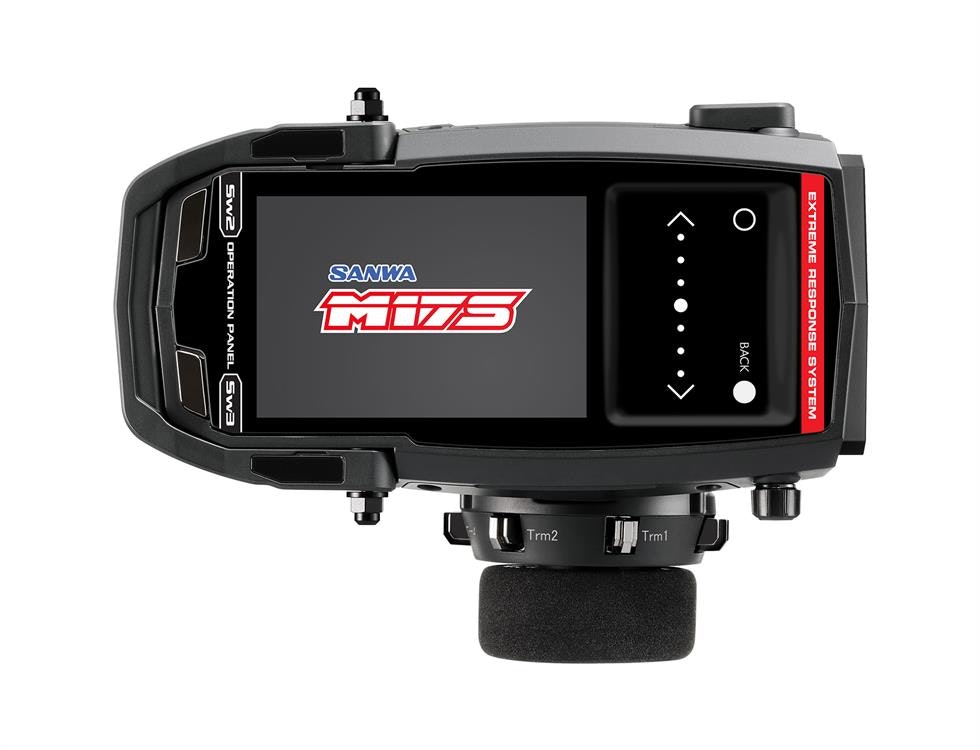

● Installed "Fine Color Display (480x320)
● TouchPad can be smooth & quick to set
● Installed Detachable Throttle Unit is available to change spring by drivers
● Steering and Throttle position can be optimized without an offset bracket. Improved Steering Unit can increase case strength during operation
● Improved Steering Unit is available to be a steering swing adjustment
● Battery recharge port is installed and the battery can be checked when recharging
● Compatible with Micro SDHC Card is available to manage firmware updates, model data, and Telemetry Log
● Installed Multi-Setting Function is available to set PGS servos to connect with transmitter
● Compatible with SSL CODE10 and CODE5 function is available to set PGS servos and SUPER VORTEX Gen2 PRO without any connection
● Installed tilt carrying handle can be held and easy to put in the box
● The Steering Unit can change position for lefty
● The Detachable Strap Hook is placed in the ideal position for drivers
● Succeeded Full Adjustable Trigger can be fittable for individual
● Optional Large Steering Wheel in the package is available to be fine operation
● Available to customize by grip pad, brake trigger, angle spacer, and variable spring in package
● RX-491 is a compact receiver, waterproof and is plugged into BIND system and short antenna
● Installed Screen Reader Function is available to sound Lap Time and Telemetry Data and an installed headphone jack can be used
● Quick and easy to set as model data and other settings by Quick Set Up Wizard
● Includes LiPo battery, 3.7v 1S 2500mAh which can be charged through micro USB.
SYSTEM FEATURES
Dull-dot Color LCD(480x320) - Switchable driving position(Left/Right) - Touch Pad - Built-in Antenna - ST,TH Adjuster - Detachable Fully Adjustable Throttle Unit - Feeling - Safety Link- Racing Mode - Setup Wizard - Dual Rate - End Pint Adjust - Anti-Lock Brake - Servo Speed - Offset - Trim/Sub Trim - Servo Reverse - Curve - Fail Safe - Timer - Lap - CODE AUX - Model Memory - Model Name - Model (Select/Copy/Clear/Sort) - Direct Model Select - RF Mode (FH5,FH4,FH3) - Response Mode (SUR/SSR/SHR/NOR) - Bind - Log(REC/RPM/VOLT/TLM1/TLM2/ST Point/TH Point/RX Mode/Reading Function) - Servo Monitor - Key Assign - Vibrator - AUX Type - Trim Type - TH Type - Calibration - Custom Menu - Mechanical Rudder Angle Adjustment - Large Steering Wheel included - Large/Small Grip Pad included - Compatible RX: Telemetry-compatible(RX-491, RX-482, RX-472, RX-47T, RX-462, RX-461) , Non-Telemetry-Compatible(RX-481,RX-481WP, RX-471 Dual ID, RX-471W, RX-451R, RX-451, RX-381,RX-480)ACCESSORYGrip Pad (Large/Small) - Large Steering Wheel - Strap Hook - Steering Slant Parts (Right Hand/Left Hand) - Trigger Angle Spacer - Brake Trigger(+1/+2) - Spring for ST and TH (Hard, Medium, Soft, Super Soft) - Dial Cover for Lefty
RECEIVER FEATURES
● Compact receiver
● Waterproof
● Plug in Bind
● Short Coaxial Antenna
● 2.4 GHz FHSS5 Spread Spectrum System 4ch
● Compatible with Telemetry*Cannot connect RPM sensor and Temperature sensor To measure RPM and Temperature is only combine with SUPER VORTEX series● Compatible with SSL (SUPER VORTEX Series, etc...)
● Ultra Response Mode (SUR)
● Extreme Response Mode (SXR)
● The smallest and lightest receiver in the class
