KYOSHO - Ultima SB Dune Master, 2WD 1/10 Off Road - KIT

Off-road buggies are famous for their ‘go-anywhere’ capabilities and the 1/10 scale EP (electric) format is particularly popular. True to its dirt-bashing prowess, Kyosho is proud to introduce the ‘Dune Master’ to the Ultima SB series of mid-class EP buggies. Built on the Ultima SB chassis with rear motor RWD (rear wheel drive) for its superior rear tire traction and maneuverability, the Dune Master features a new basher body that looks like a modified car rather than the open wheel buggy style. New tire and wheel designs highlight the appeal of the original car body style. Based on the Ultima RB5 chassis which was previously a competition-level racer, each component has been reviewed to deliver superior handling and control for beginners at an optimal price. The rear motor configuration improves rear grip, allowing for traction stability on low-grip surfaces such as sports fields and open terrain as well as delivering high-speed performance on proper R/C race tracks. The new Ultima SB Dune Master and its highly popular Ultima SB Dirt Master predecessor set the standard for modern mid-class buggies that can be enjoyed by all drivers, either as a step up from entry-level models or as a second car for experienced drivers.

Standard EP unassembled buggy based on racing model design delivers high performance at a great value price.

A newly designed basher body (unpainted) is included with a decal set.

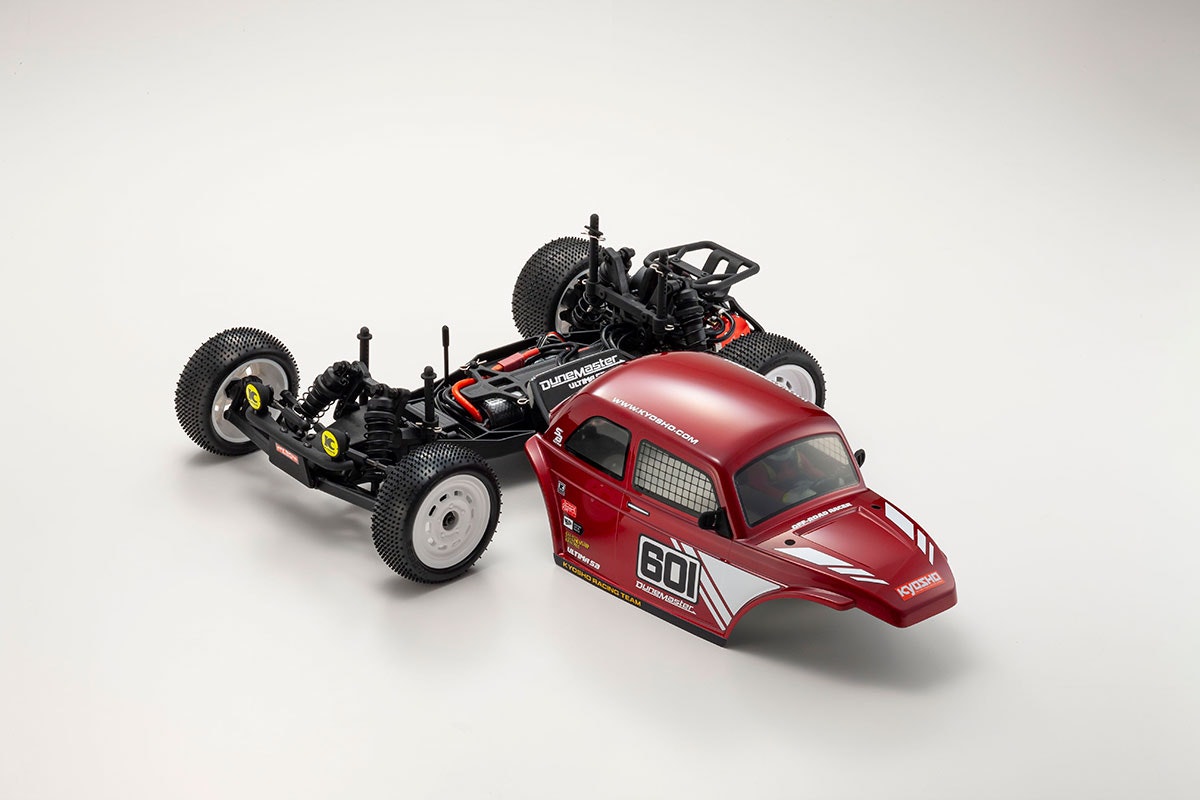

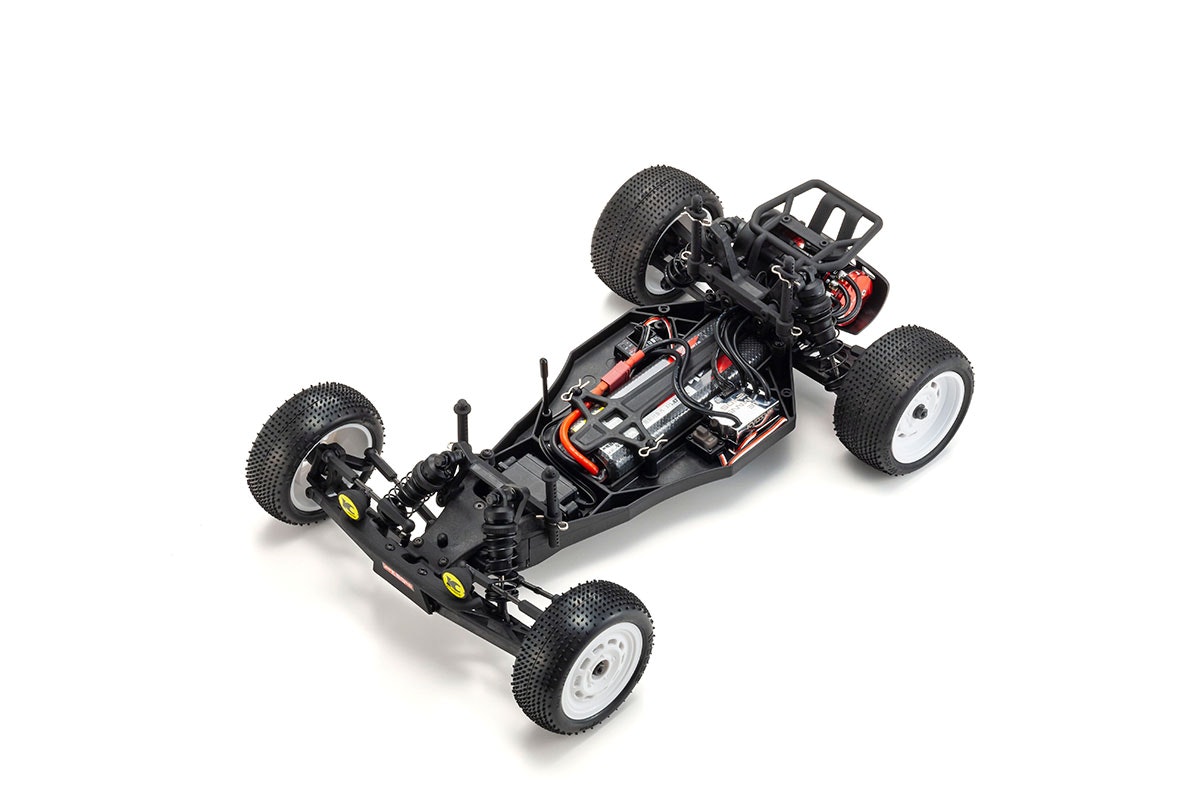

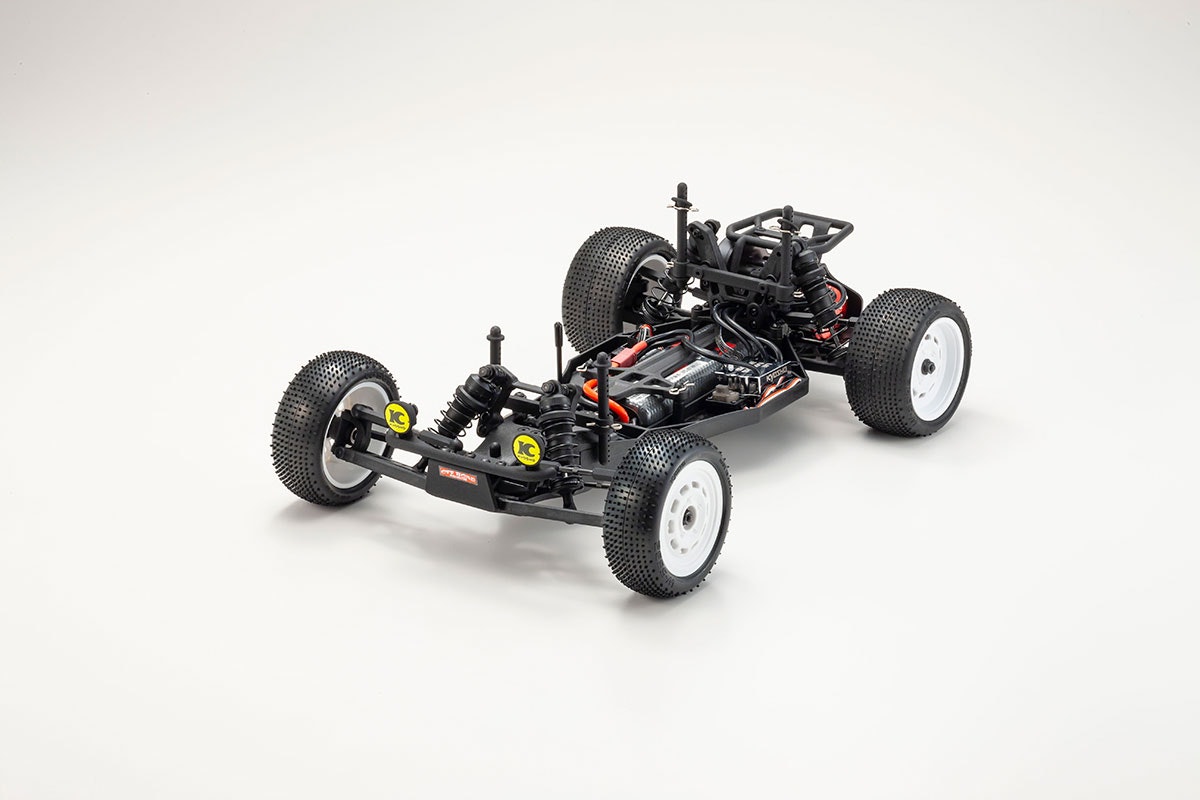

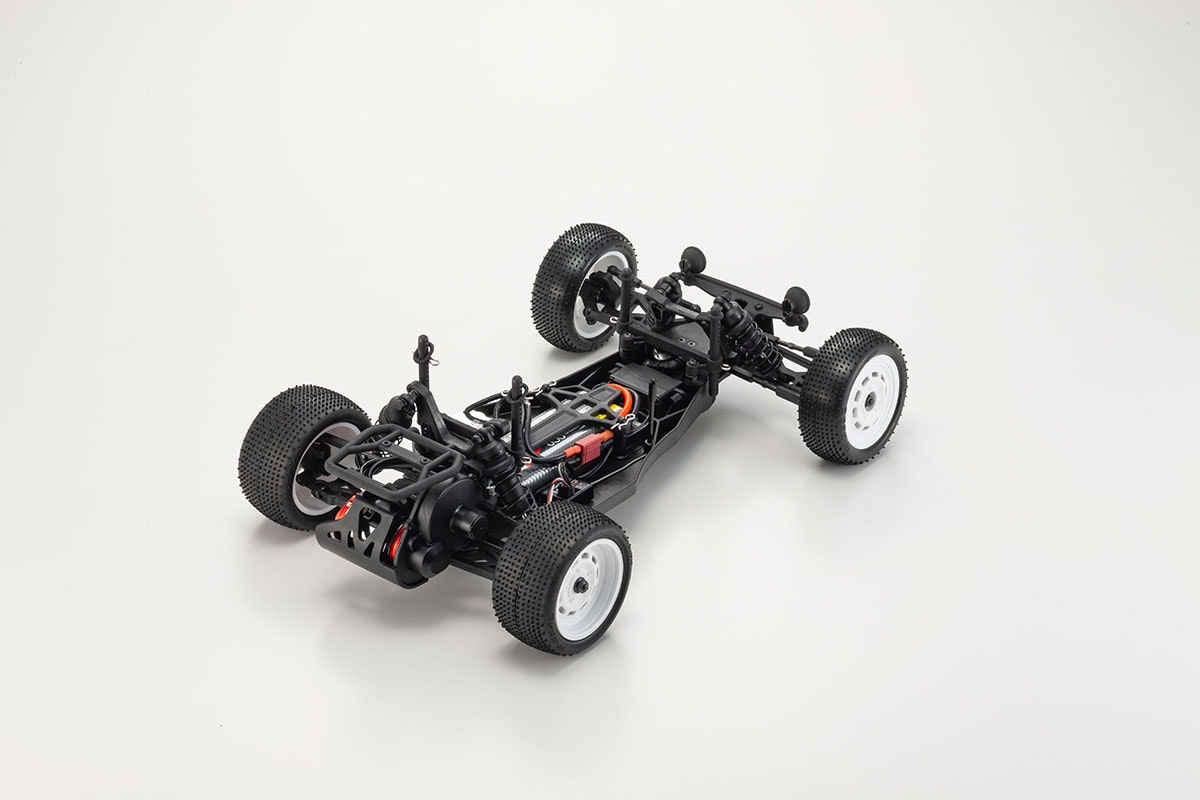

Easy-to-assemble resin main chassis exhibits optimal flexibility and is compatible with most standard R/C systems.

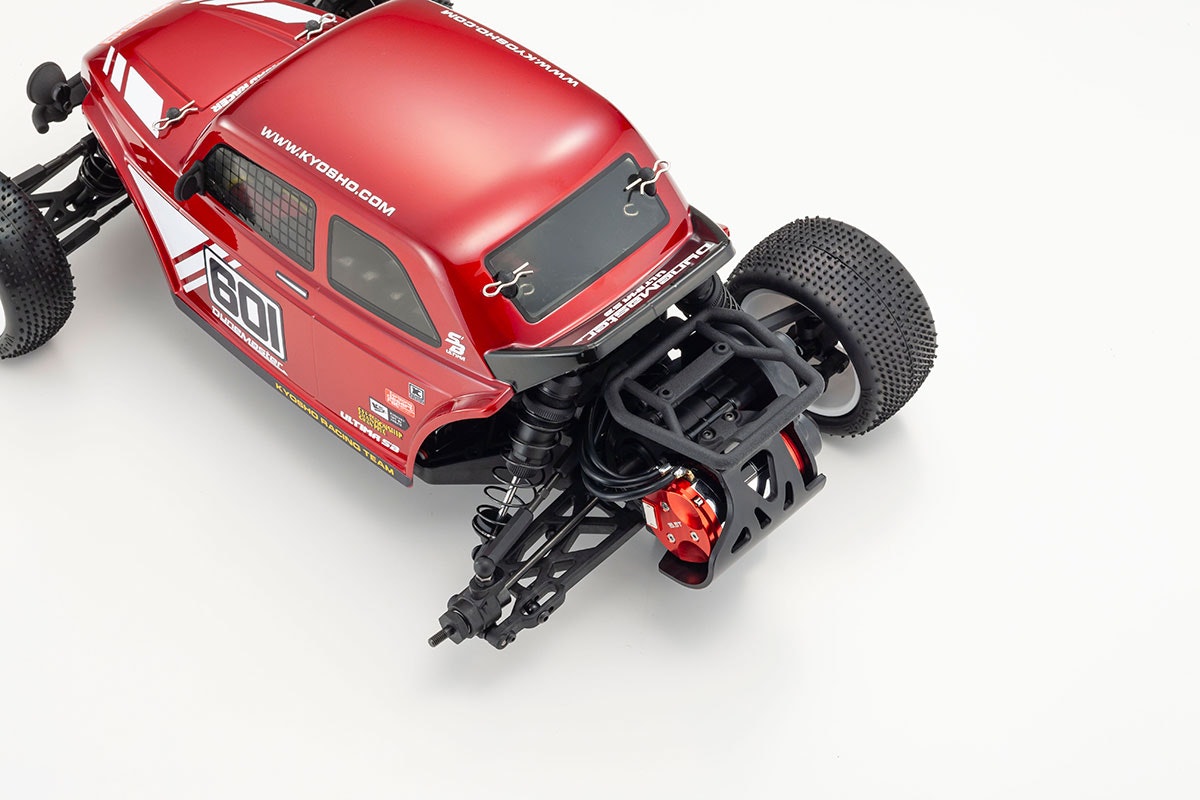

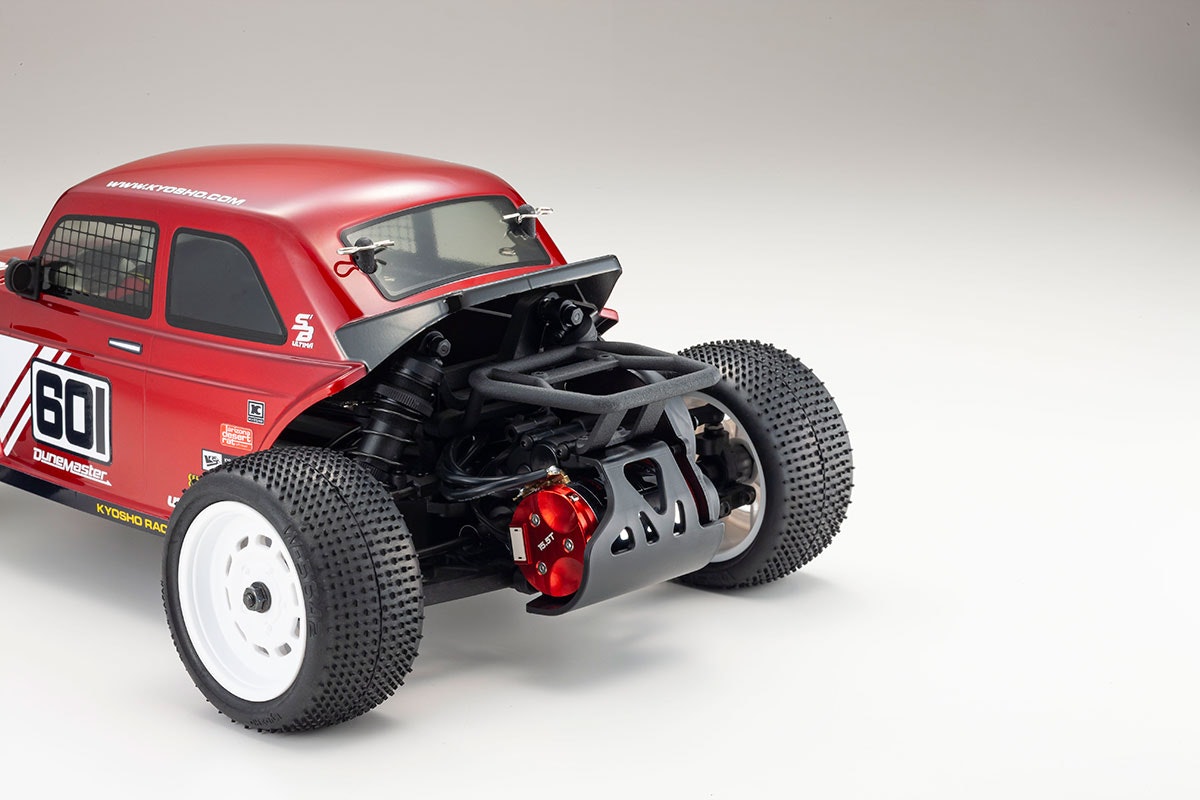

The rear motor design produces an effective grip on the rear tires, making it easier to control.

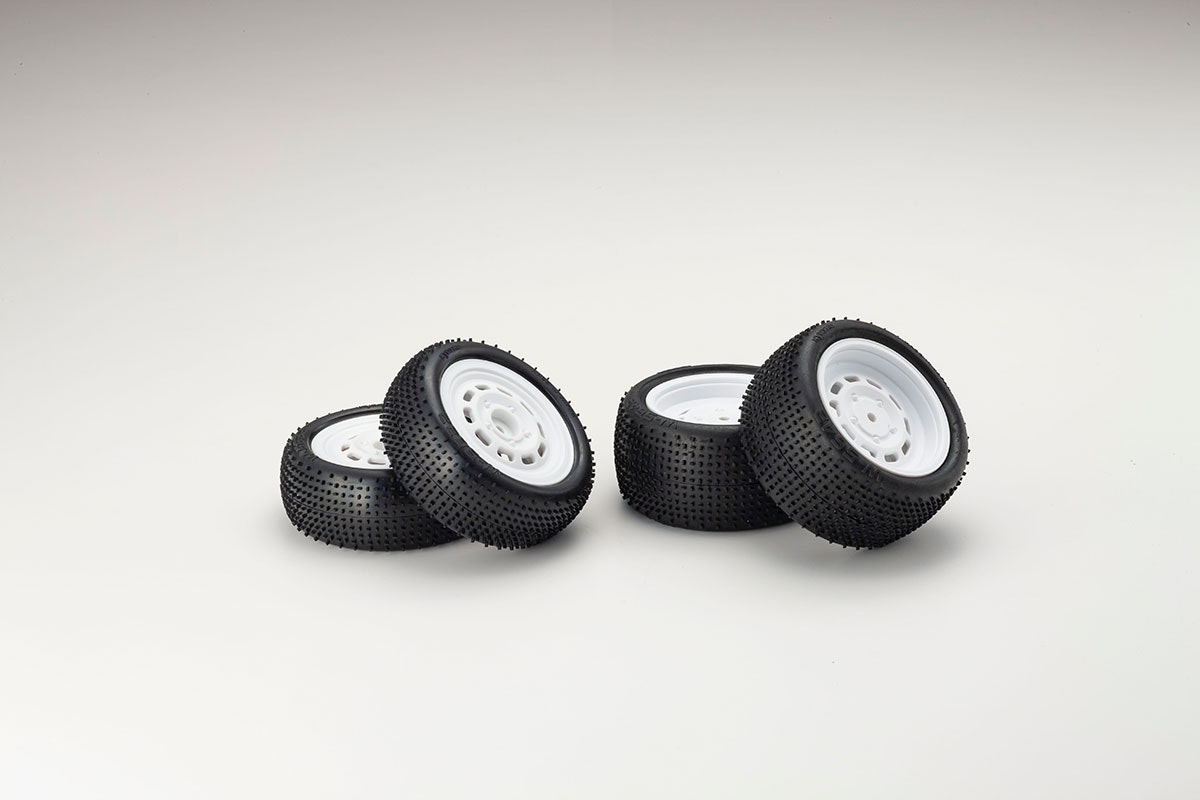

Includes front & rear tires with wheels that provide stable grip on various road surfaces and enhance scale appearance.

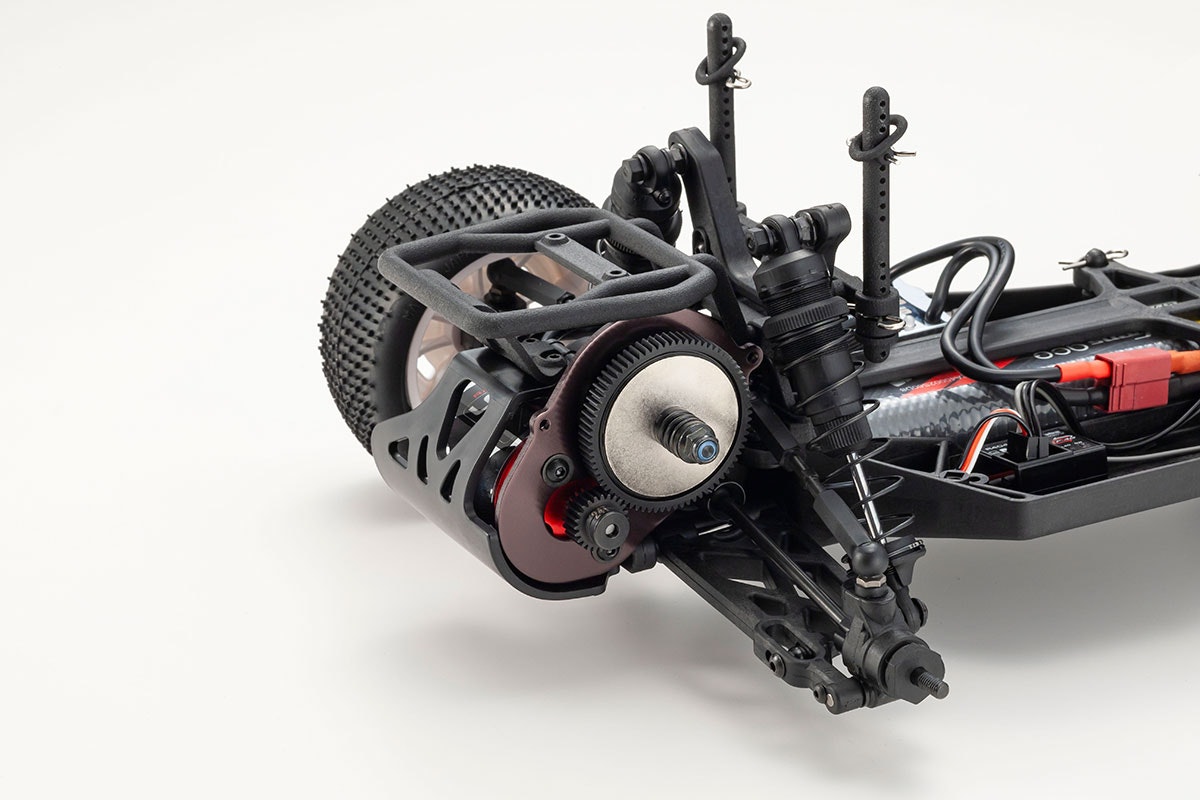

A slipper clutch equipped as standard protects the gears from excessive loads on the drive system. Can be adjusted for different driving characteristics.

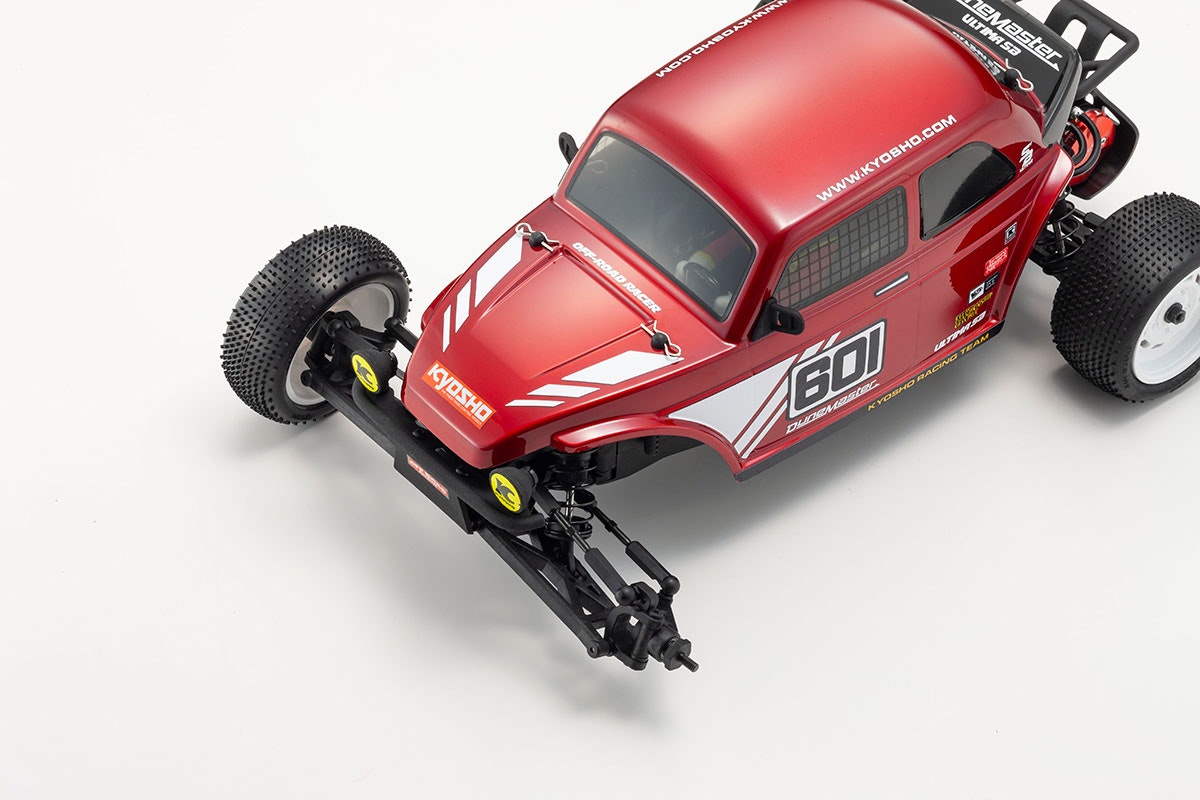

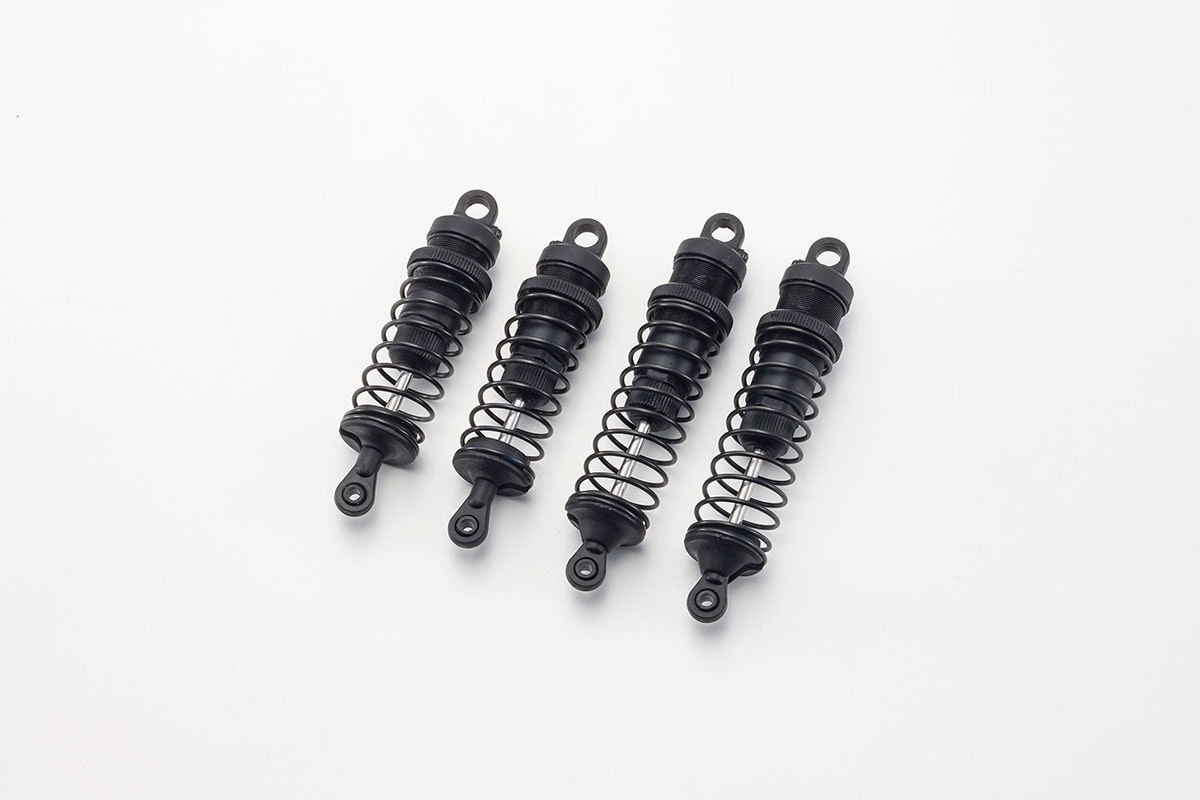

Double wishbone suspension on the front and rear delivers superior surface tracing. Supported by precision resin oil shocks.

Turnbuckles on suspension and steering rods allow length adjustment while installed for fast and accurate setting changes.

The steering mechanism is equipped with a servo-saver function that protects the servo from crashes and shocks.

Full bearing specifications are standard and deliver exceptional drive system efficiency.

Compatible with optional parts for the Ultima series for further tuning and styling.

Paint in your choice of color and then apply the included decals to achieve the finish shown in the photo.

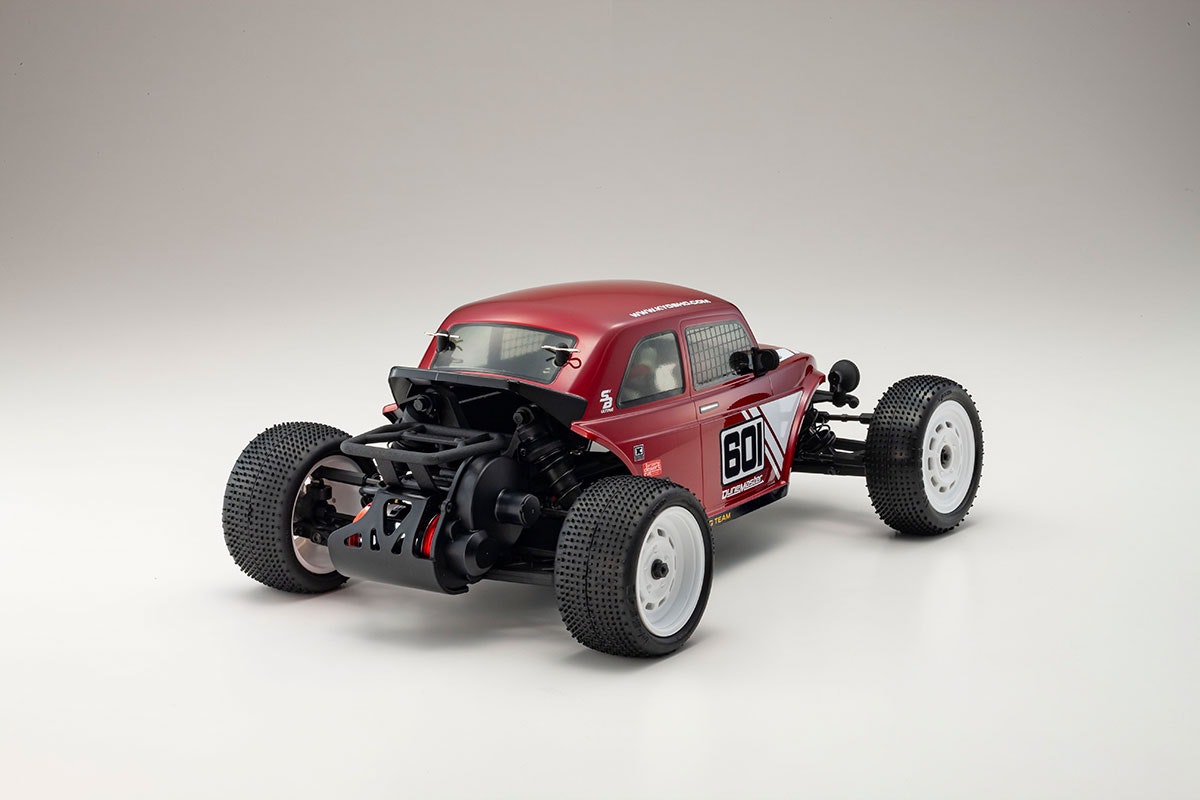

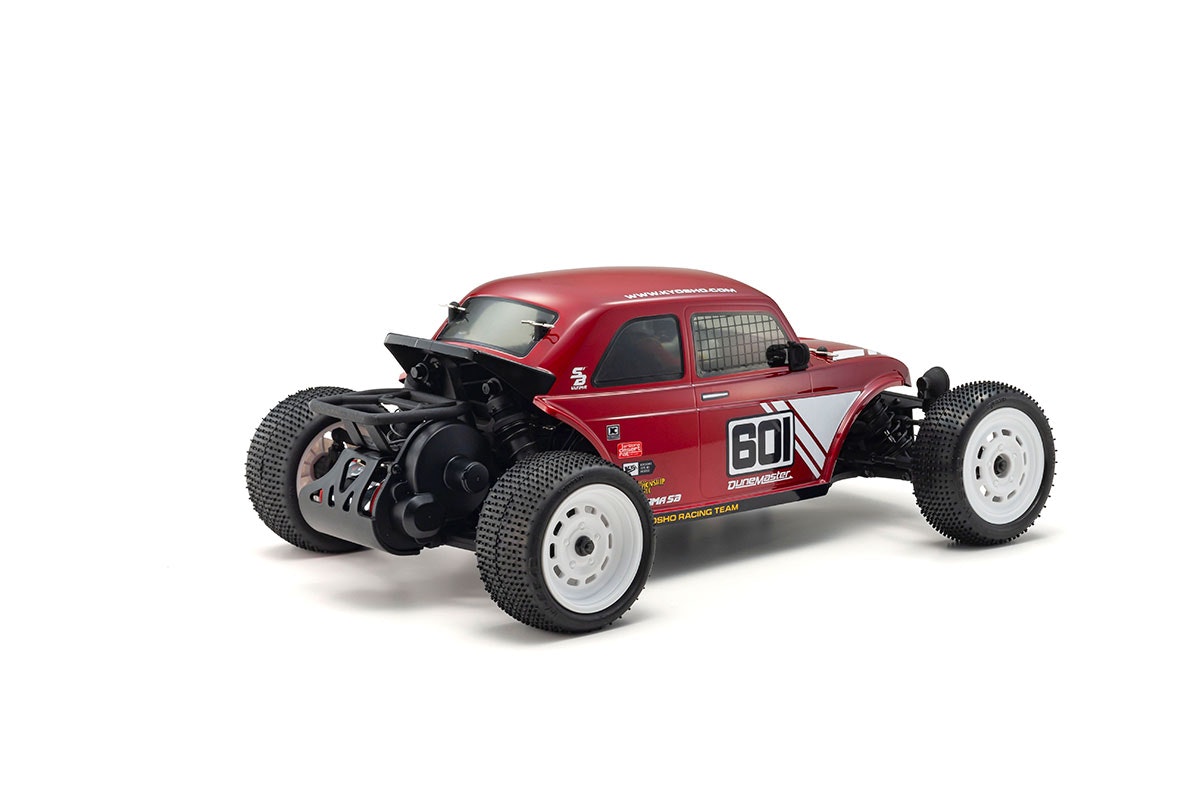

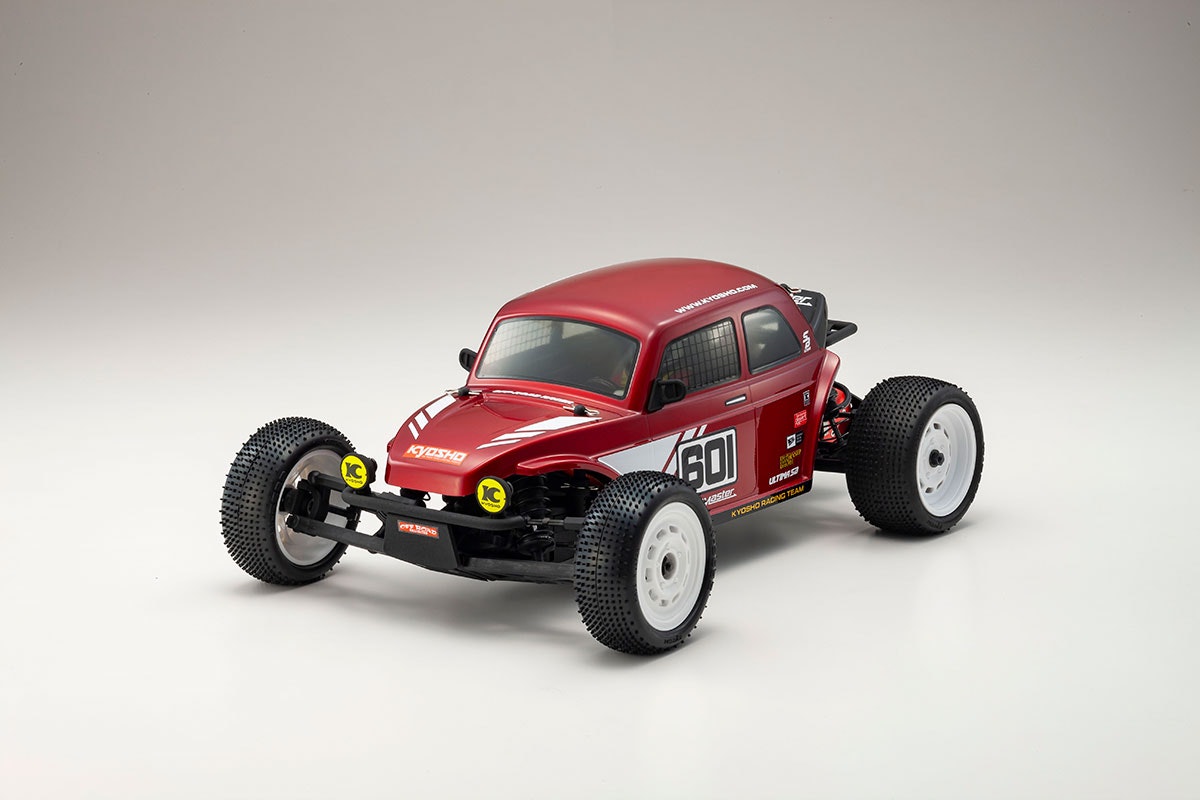

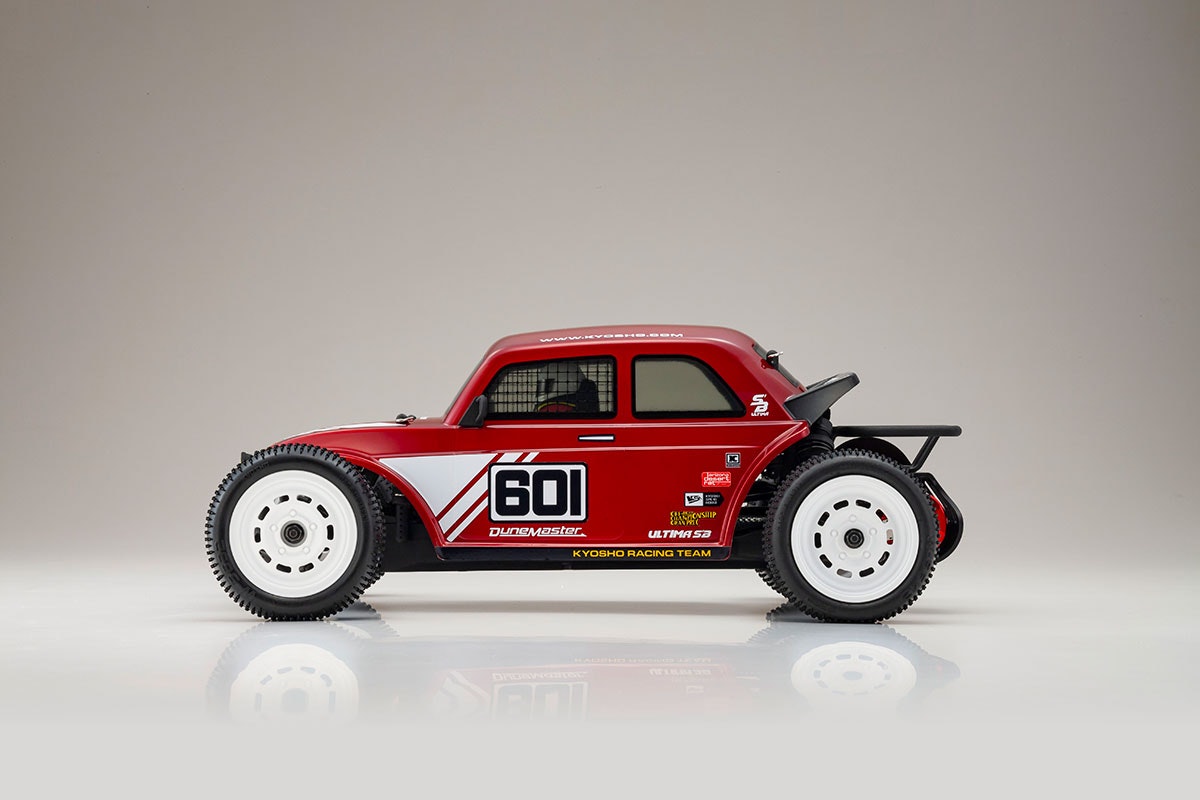

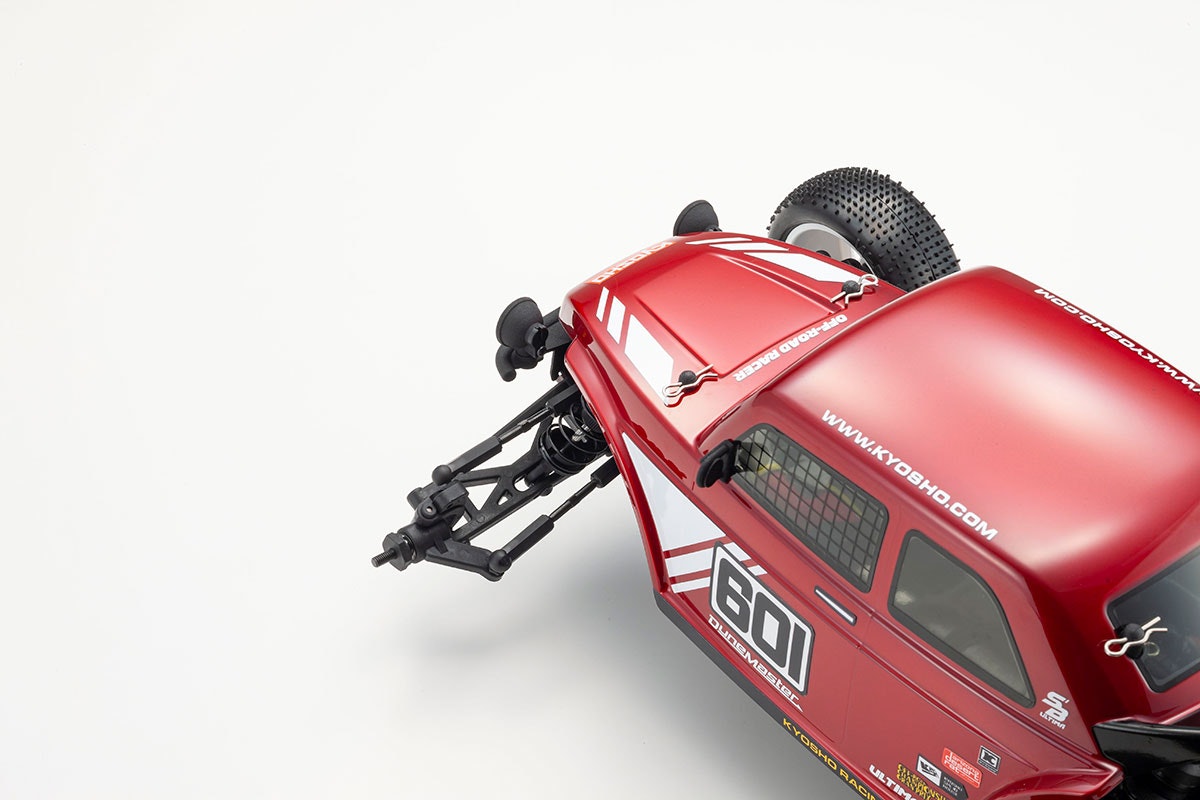

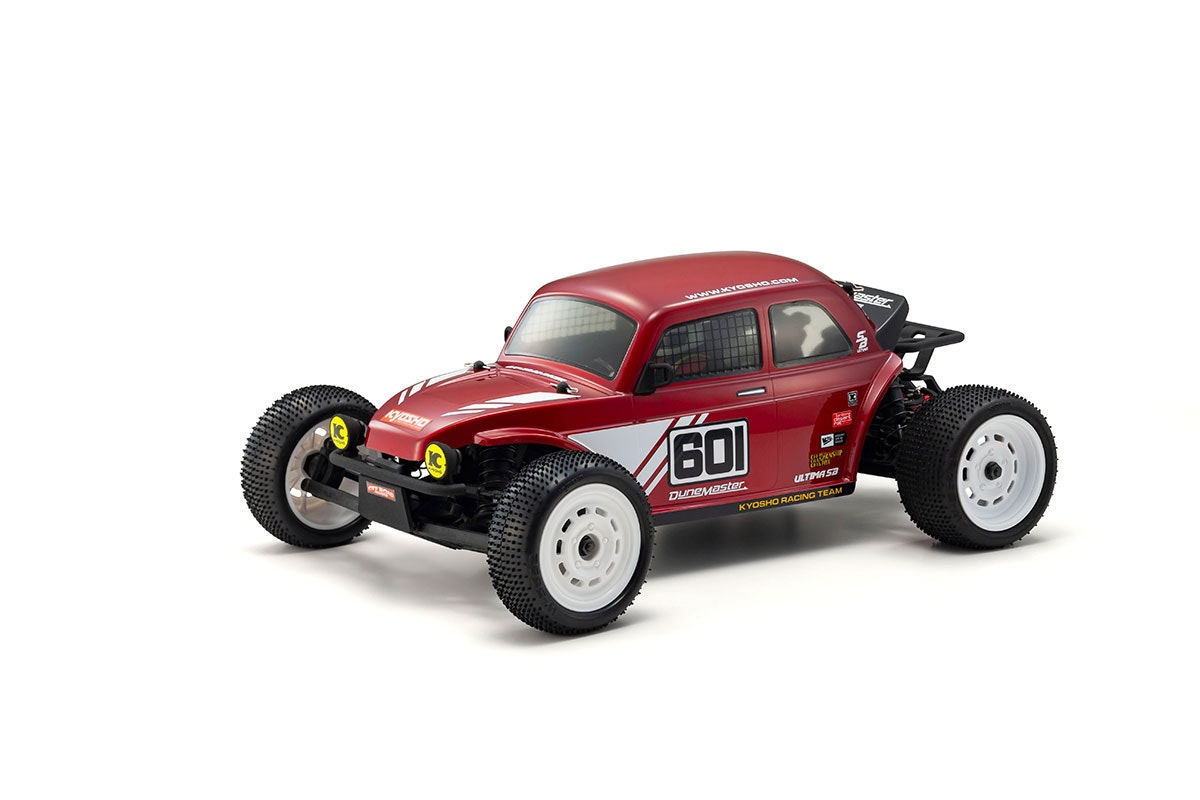

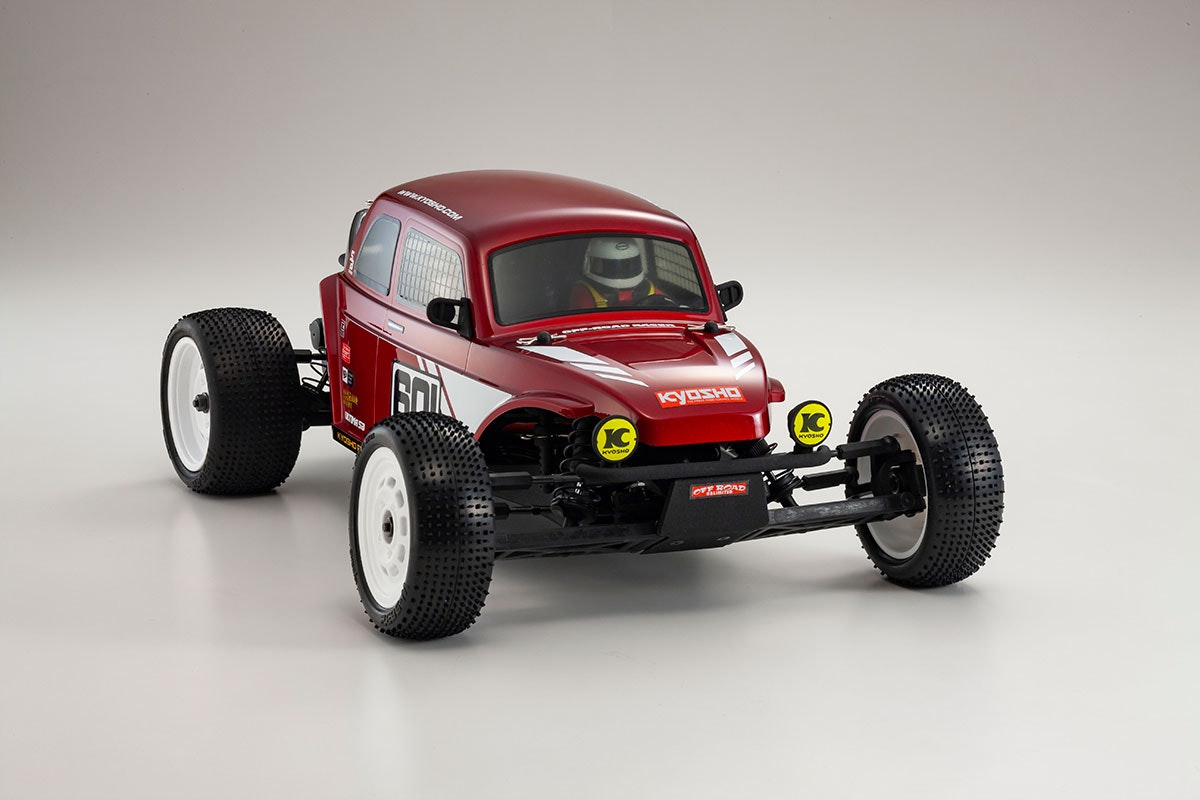

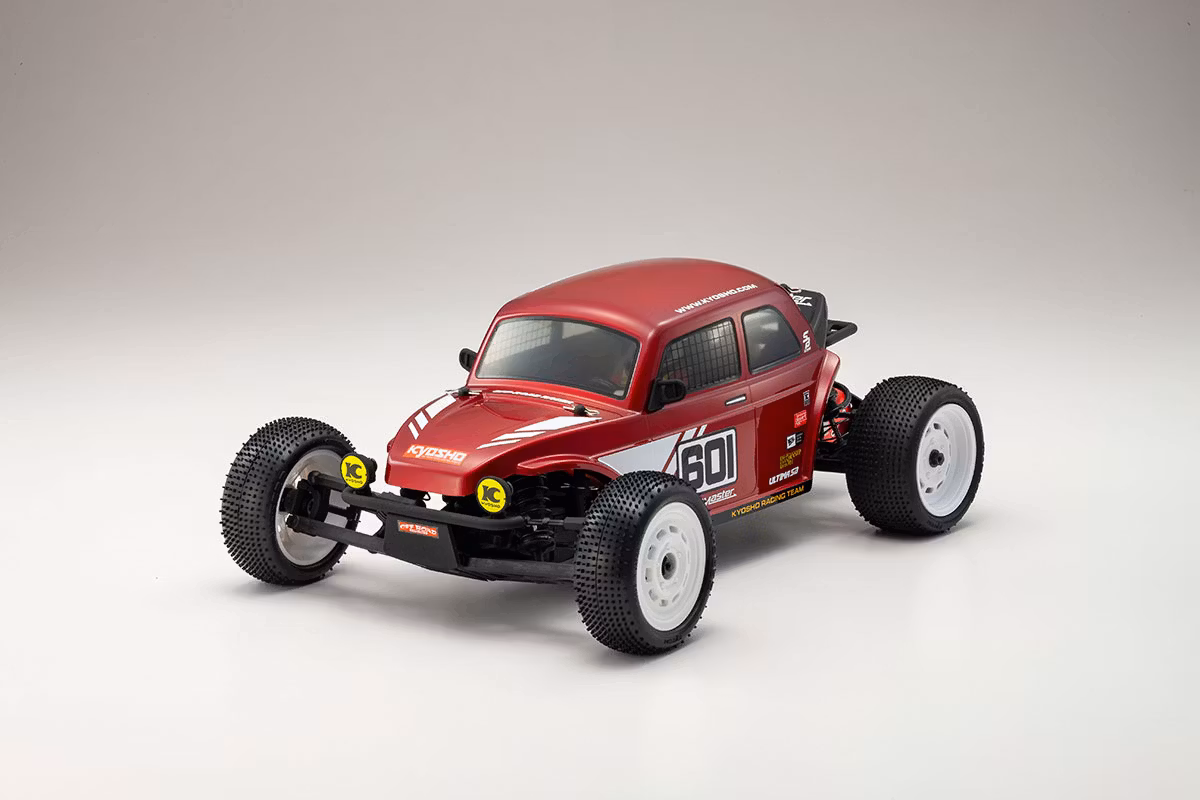

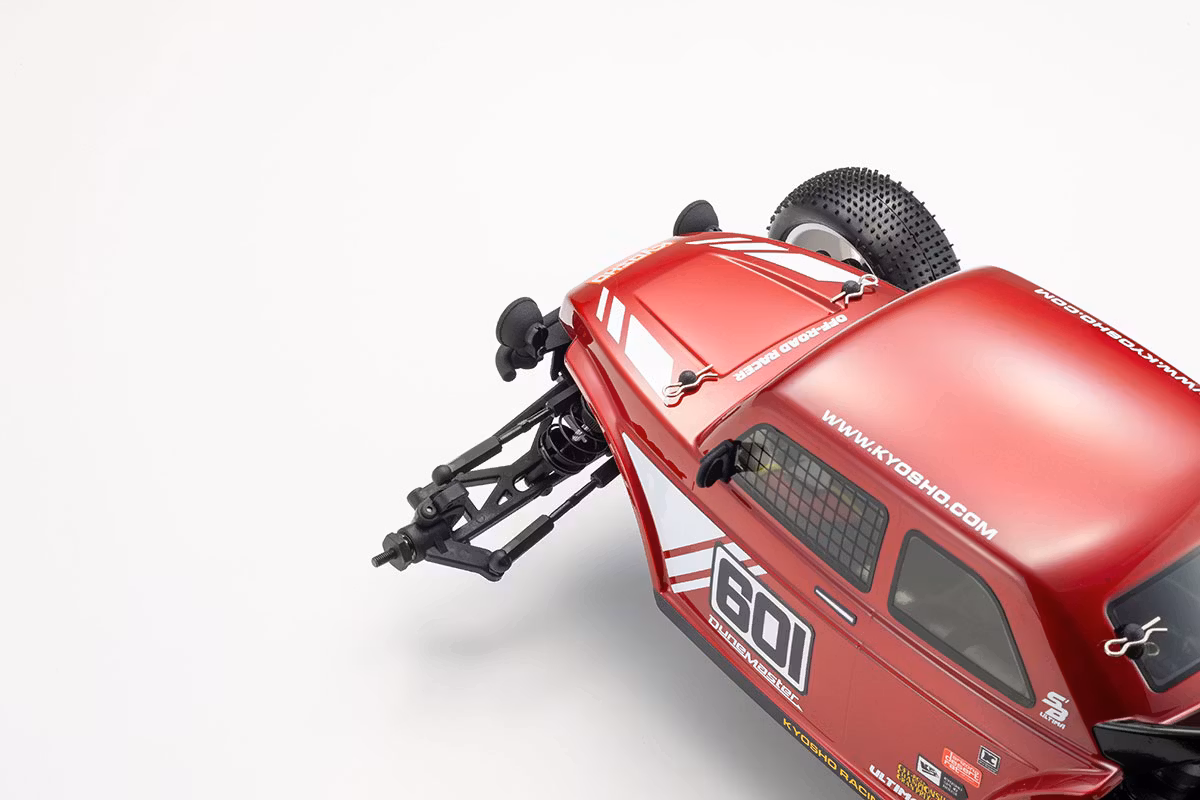

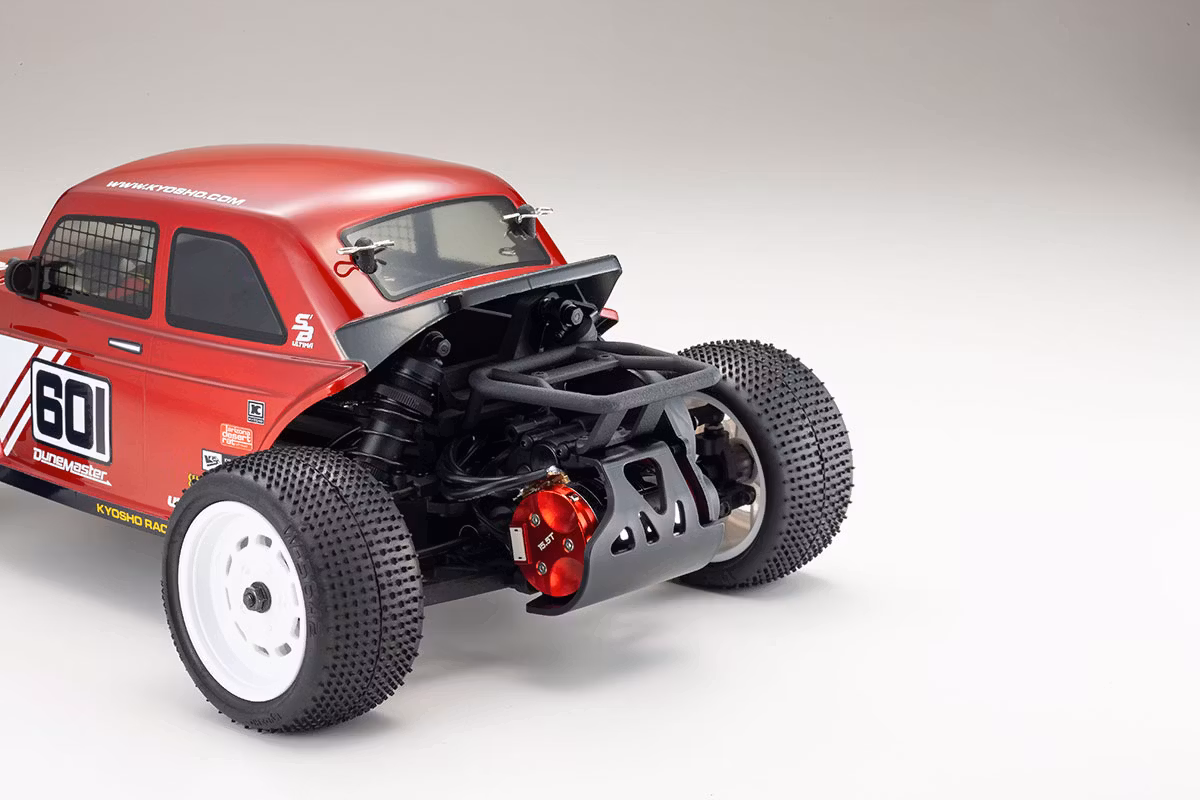

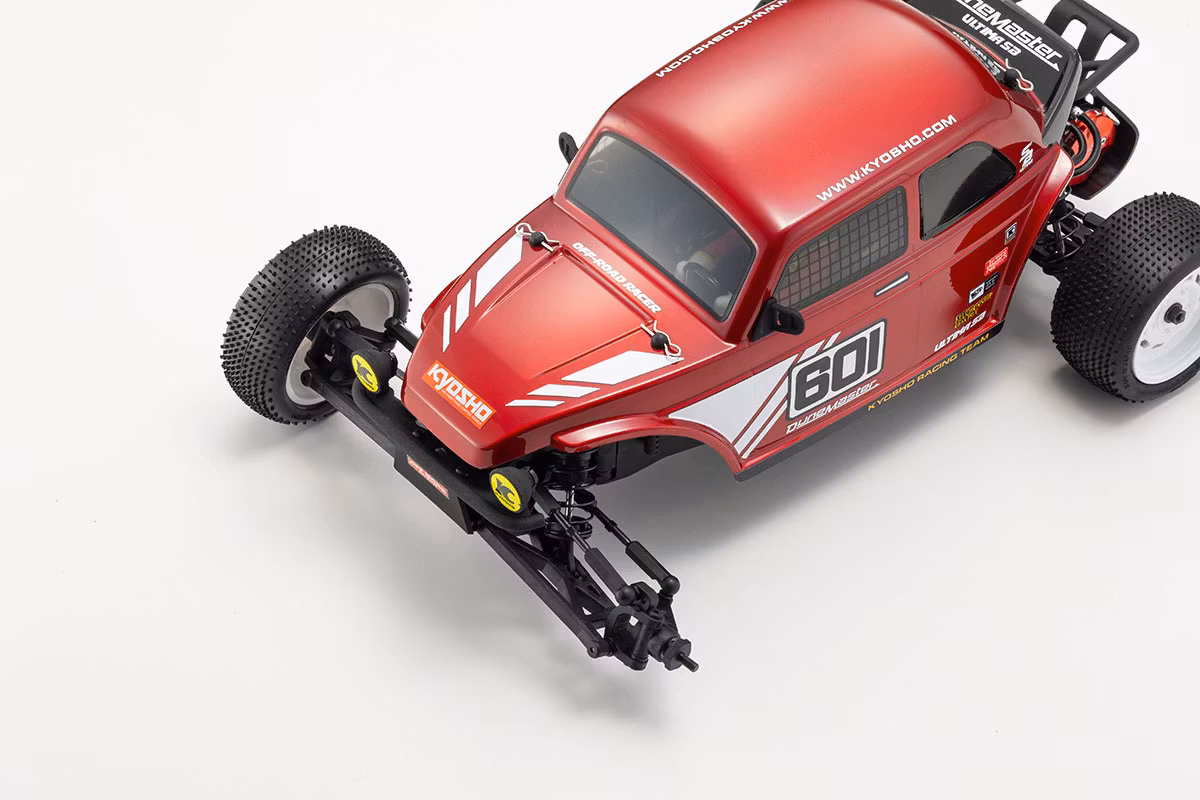

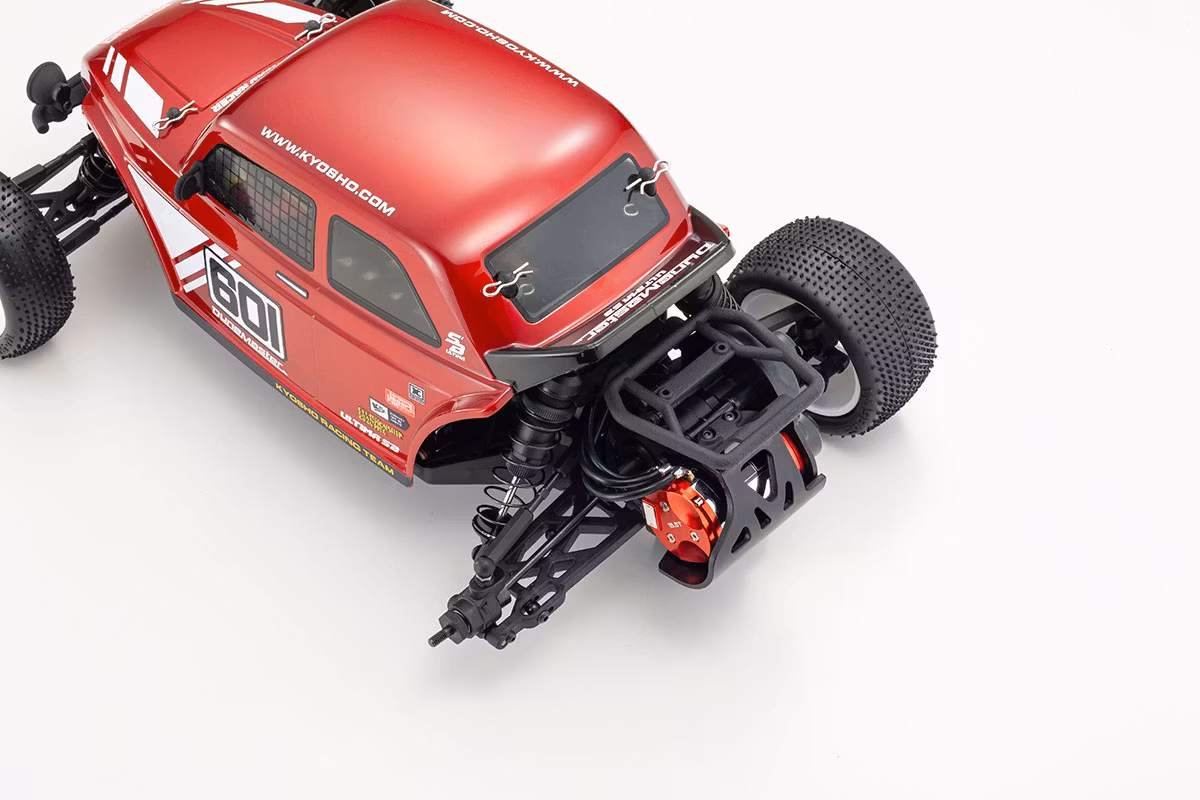

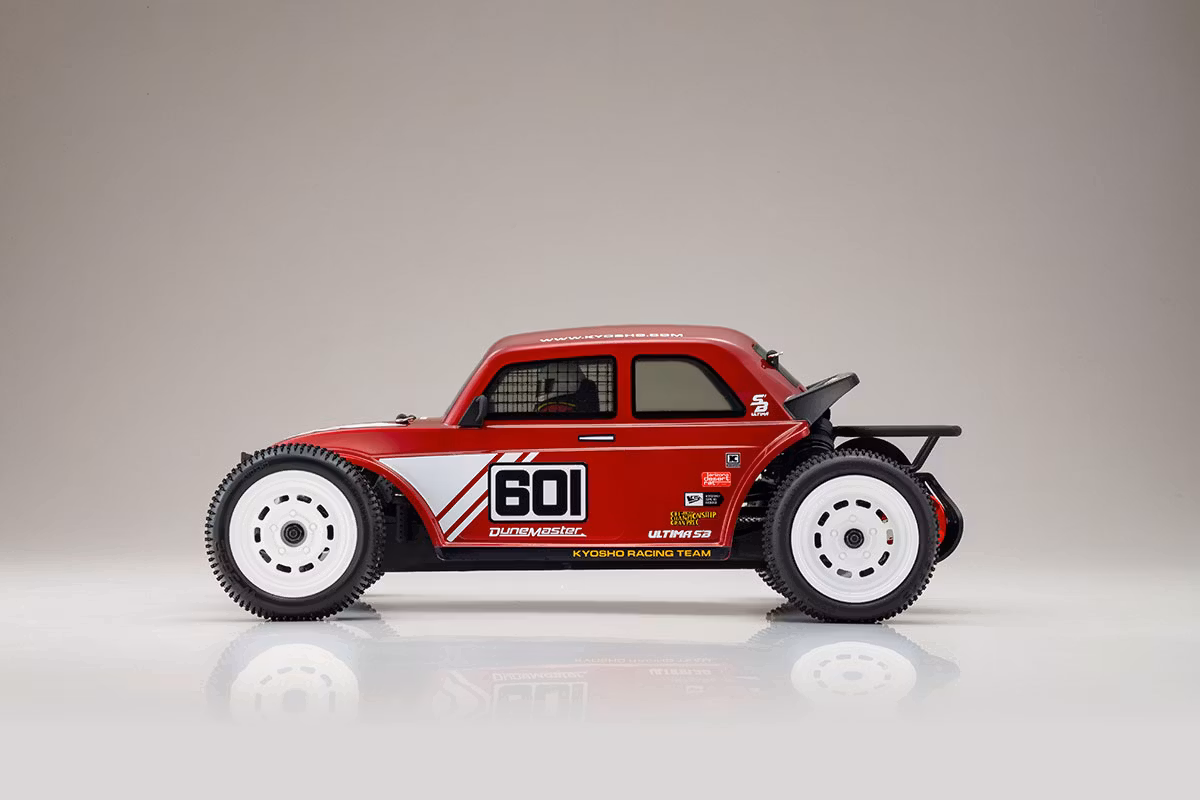

The newly designed body is based on a full-scale off-road vehicle in the basher or Baja style. Its realistic sense of scale recreates a dynamic off-road atmosphere different to other off-road racing buggies. Front fog lights can be fitted with the optional LED light unit (sold separately). In addition, side mirrors and driver figures in the cockpit recreate a more realistic driving experience. A realistic molded resin roll cage mounted on the rear of the chassis recreates that wasteland dirt basher style. Roll cage can also be fitted with vintage car rear wing (sold separately) to add a wild style to its elevated driving performance. The wheel design is aligned to its real-car-like body styling. The rear wheels are the same dish type used on the Dirt Cross 4WD while the front wheels are newly designed for the Dune Master. Micropin spike tires on the front and rear deliver extreme grip. Wider front tires than the Ultima SB Dirt Master optimize front/rear grip balance while elevating overall appearance. Rear 2WD off-road buggy based on the competition-level Ultimate RB5 chassis with a rich track record at major races including World Championships. Compatible with almost all batteries for 1/10 scale models including standard straight packs. Resin oil shocks absorb and moderate feedback from the road surface to maintain a stable posture of the vehicle. Dial adjustment of spring tension makes it easy to set chassis height. A wide range of race-spec springs can also be fitted. The gear differential on the rear enables smooth cornering and is easy to assemble and maintain. Add diff oil (sold separately) to convert into oil-filled diff. Ultima series ball differential can also be fitted for circuit driving. Tapping screws with easy maintenance 2mm hex heads are mainly used for fixing plastic parts, instead of plus-head screws usually used on entry-level models.

TECHNICAL DATA

Length 378mm

Width 249mm

Height 150mm

Wheelbase 270mm

Tread (F/R) 221mm／201mm

Tire F:φ84×33mm R:φ86.5×42mm

Gear Ratio 8.23：1

Weight 約1,480g

Motor (sold separately)

KIT CONTENTS

Unassembled kit set

Polycarbonate

clear body

Wing

Window mask seal

Decals

Chassis parts

Cross wrench

Hex wrench（1.5mm/2.0mm）

Grease

Tires, Tire Inners, Wheels

Pinion Gear（24T）

REQUIREMENT TO RUN

2ch～3ch transmitter & receiver for R/C cars

Servo

ESC

Motor

Silicone oil for Shock

Batteries for chassis(2S Lipo Recommendation）

Charger

Paint for coloring body (*spray paint for polycarbonate)

Tools
