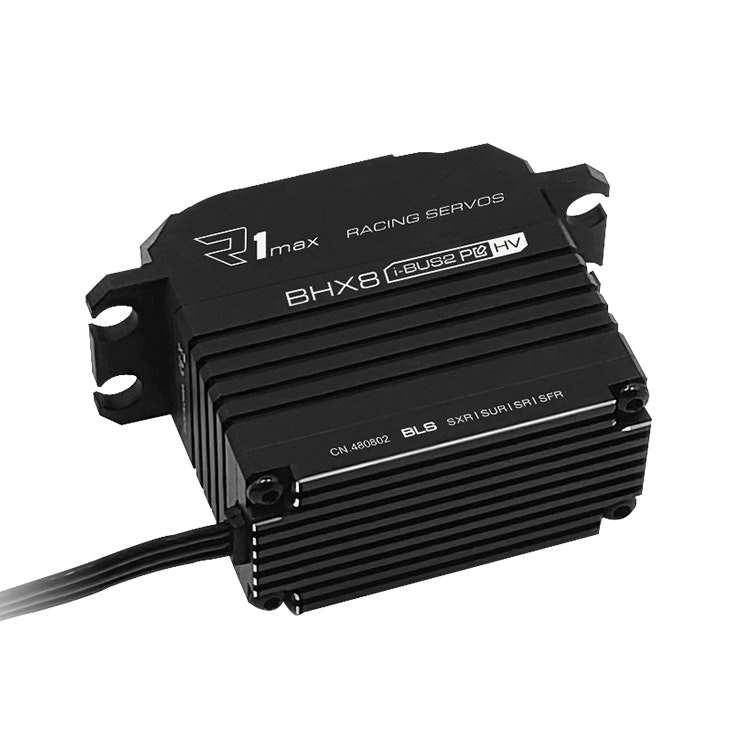

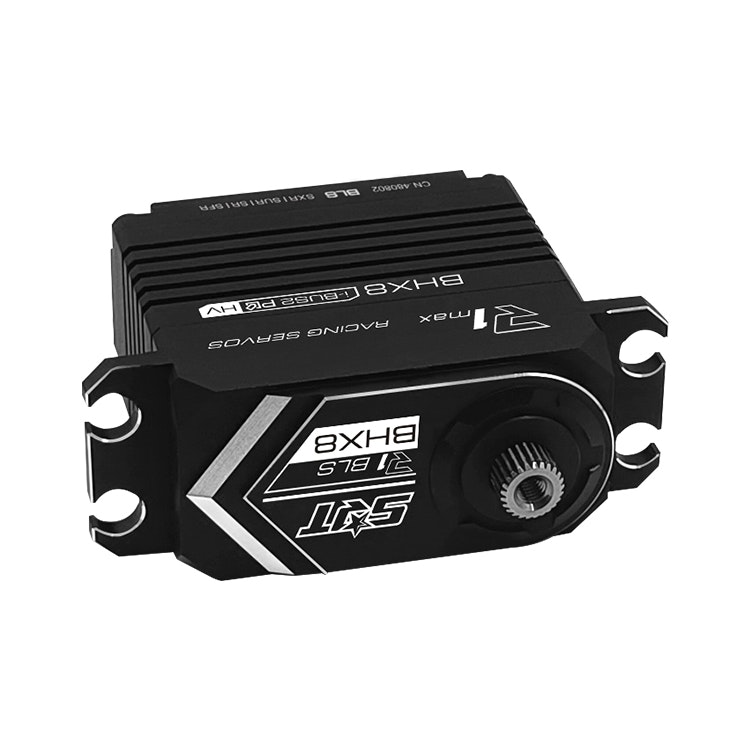

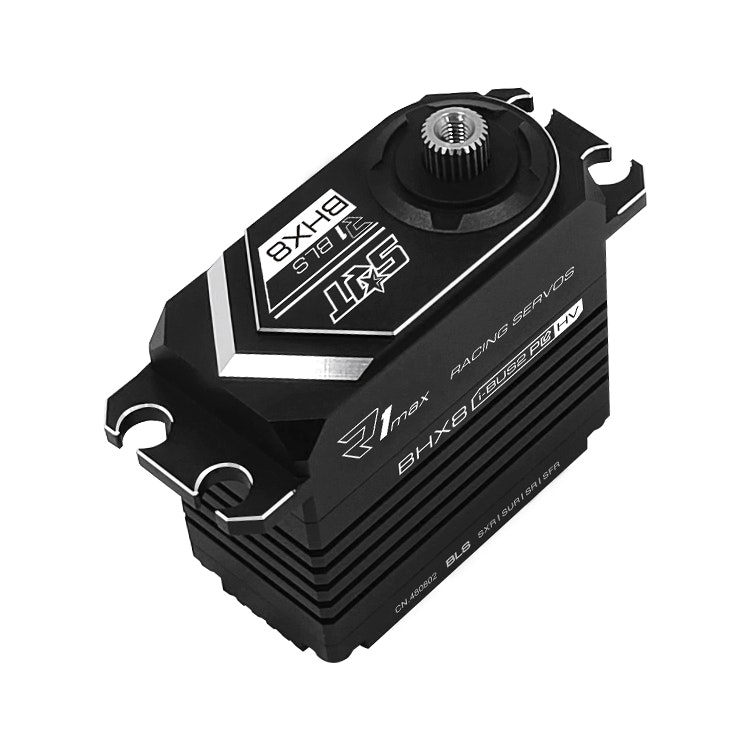

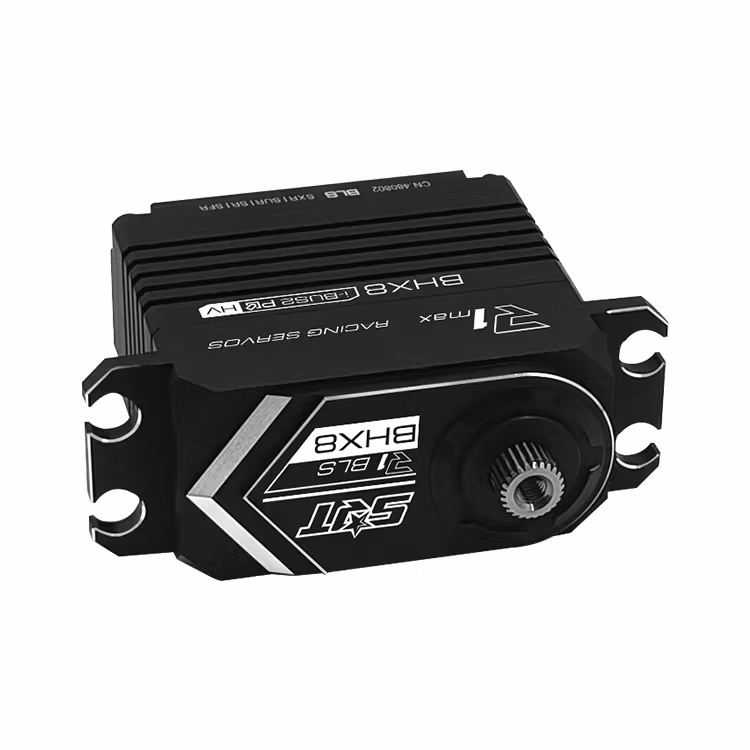

SRT Racing Servo X8 0.078s/55kg/7,4V

Art.nr: SRT-BHX8

● Superior Holding Torque

● Incredible efficiency and low power consumption

● Standard dimensions make it perfect for vehicles that can benefit from a high-quality servo

● CNC Machined aluminum case for exceptional cooling

● Programmable High torque Brushless servo

● Supporting SXR, SUR, SR, SFR multiple ultra high-speed modes

● 25T output shaft

● 2 μsec Dead Band

● 1-Year Limited Warranty

TECHNICAL DATA
● Type: Digital
● Bearing: Dual
● Motor Type: Brushless
● Gear Type: Metal
● Gear Material: Steel
● Control system: pulse width control
● Working frequency: 1520μs / 330hz
● Operating voltage: dc6.0-8.4v
● Operating temperature range: -10 to + 60 degrees
● Operating speed (6.0v): 0.11 sec/60 degrees at no load
● Operating speed (7.4v): 0.078 sec/60 degrees at no load
● Operating speed (8.4v): 0.07 sec/60 degrees at no load
● Stall torque (6.0v): 50.0kg.cm (694.4 oz/in)
● Stall torque (7.4v): 55.0kg.cm (763.8 oz/in)
● Stall torque (8.4v): 60.0kg.cm (833.2 oz/in)
● Potentiometer drive: direct drive
● Dimensions: 40.0 x 20.0 x 39.2 mm /1.57 x 0.79 x 1.54 in
● Weight: 82.0g (2.89 oz)
● Connector wire length: jr 300 mm
